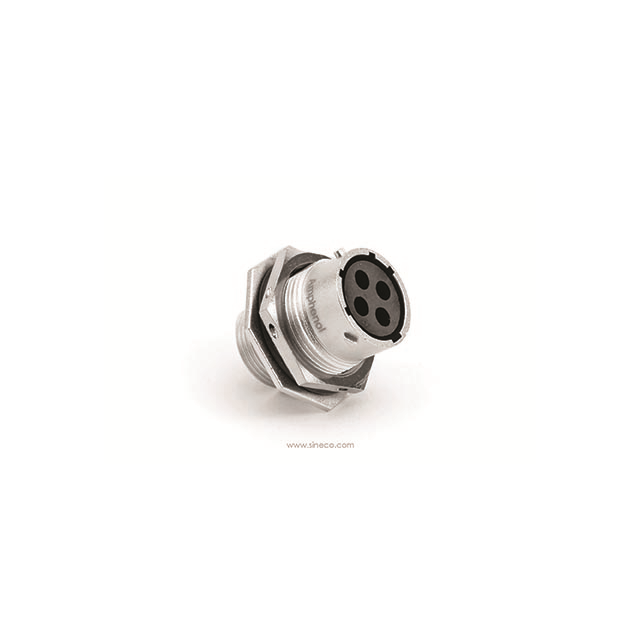

RT07144SNH03

Active

Amphenol Sine Systems Corp

JAM NUT RECEPTACLE, FEMALE WITH

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

JAM NUT RECEPTACLE, FEMALE WITH

Technical Specifications

Parameters and characteristics for this part

Specification	RT07144SNH03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Includes	1 O-Ring, 1 Gasket, 1 Nut, 1 Connector
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	4
Shielding	Shielded
Type	For Female Sockets

Part	Fastening Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Contact Shape	Contact Type	Note	Shielding	Housing Color	Contact Size	Ingress Protection	Insert Material	Shell Finish	Orientation	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Shell Material	Type	Includes	Features
Amphenol Sine Systems Corp RT07144SNH03	Bayonet Lock	UL94 V-0	125 °C	-40 °C	Bulkhead - Front Side Nut	Circular	Crimp	Contacts Not Included	Shielded	Silver	2.5 mm	IP67 - Dust Tight Waterproof	Thermoplastic	Nickel	N	Receptacle Housing	4	14	4	Zinc Alloy	For Female Sockets	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RT07144PNH	Bayonet Lock	UL94 V-0	105 ░C	-40 °C	Bulkhead - Front Side Nut	Circular	Crimp	Contacts Not Included	Shielded	Silver	2.5 mm	IP67 - Dust Tight Waterproof	Thermoplastic	Nickel	N	Receptacle Housing	4	14	4	Zinc Alloy	For Male Pins
Amphenol Sine Systems Corp RT07144SNH	Bayonet Lock	UL94 V-0	105 ░C	-40 °C	Bulkhead - Front Side Nut	Circular	Crimp	Contacts Not Included	Shielded	Silver	2.5 mm	IP67 - Dust Tight Waterproof	Thermoplastic	Nickel	N	Receptacle Housing	4	14	4	Zinc Alloy	For Female Sockets
Amphenol Sine Systems Corp RT07144PNHEC	Bayonet Lock	UL94 V-0	105 ░C	-40 °C	Bulkhead - Front Side Nut	Circular	Crimp	Contacts Not Included	Shielded	Silver	2.5 mm	IP67 - Dust Tight Waterproof	Thermoplastic	Nickel	N	Receptacle Housing	4	14	4	Zinc Alloy	For Male Pins	1 Connector 1 Nut 1 O-Ring	Backshell
