5401FE 008U500

Active

Belden Inc.

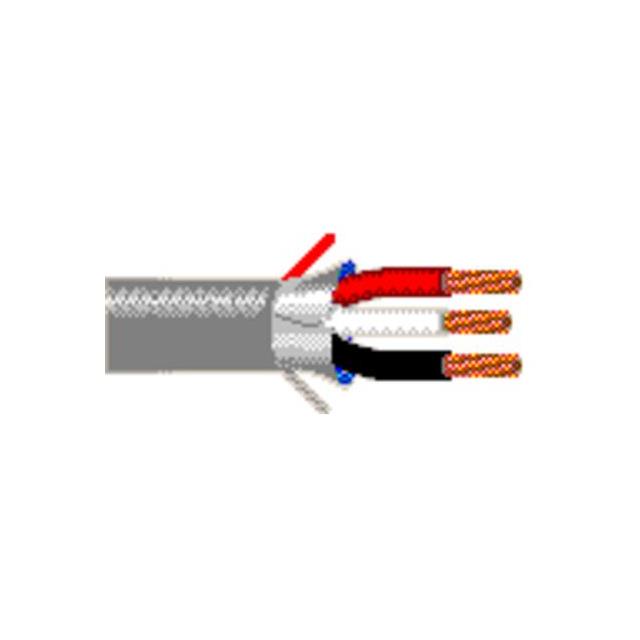

CABLE 3COND 20AWG GRAY SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 20AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5401FE 008U500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter	0.149 "
Jacket (Insulation) Diameter	3.78 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Shield Coverage	Shield Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Number of Conductors	Jacket Color	Conductor Material	Wire Gauge	Cable Type	Shield Type	Jacket (Insulation) Material	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Features	Usage	Ratings	Length [x]	Length [x]
Belden Inc. 5401FE 0081000	0.149 "	3.78 mm	100 %	Aluminum	300 V	0.432 mm	0.017 in	Polypropylene (PP)	3	Gray	Copper Bare	20 AWG	Multi-Conductor	Foil	Poly-Vinyl Chloride (PVC) Riser	1000 ft	304.8 m	28	7	Drain Wire Rip Cord	Security Sound	UL Style CMR
Belden Inc. 5401FE 008U500	0.149 "	3.78 mm	100 %	Aluminum	300 V	0.432 mm	0.017 in	Polypropylene (PP)	3	Gray	Copper Bare	20 AWG	Multi-Conductor	Foil	Poly-Vinyl Chloride (PVC) Riser			28	7	Drain Wire Rip Cord	Security Sound	UL Style CMR	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Conductor Multi-Conductor Cable Gray 20 AWG Foil 500.0' (152.4m)
