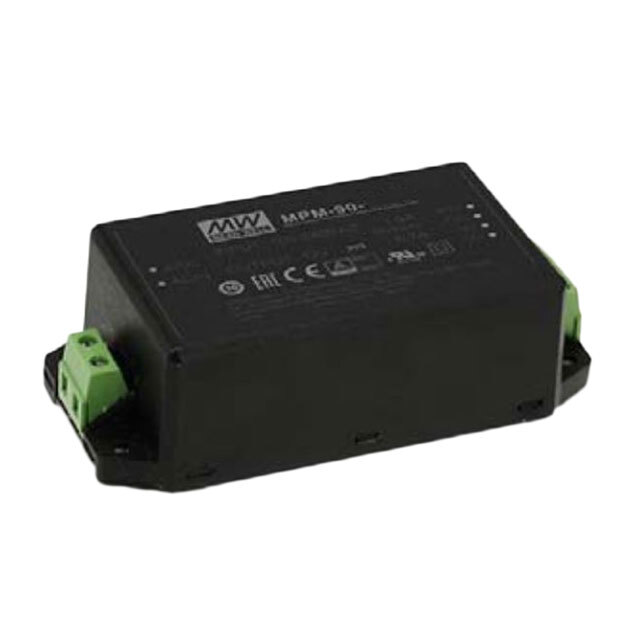

MPM-90-24ST

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 90W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 90W

Technical Specifications

Parameters and characteristics for this part

Specification	MPM-90-24ST

Applications	Household Appliances, Medical
Approval Agency	TUV, cURus, EAC, CE, CB
Current - Output 1	3.75 A
Efficiency	93 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-30 °C
Power (Watts)	90 W, 99 W
Size / Dimension [x]	109 mm
Size / Dimension [x]	4.29 in
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.05 in
Size / Dimension [z]	33.5 mm
Size / Dimension [z]	1.32 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	80 VAC, 113 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Voltage - Isolation	Efficiency	Current - Output 1	Minimum Load Required	Applications	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)
MEAN WELL USA Inc. MPM-90-24ST	4000 V	93 %	3.75 A		Household Appliances Medical	Enclosed	33.5 mm	52 mm	109 mm	4.29 in	1.32 in	2.05 in	CB CE cURus EAC TUV	1	80 VAC 113 VDC	264 VAC 370 VDC	24 V	Chassis Mount	-30 °C	80 ¯C	90 W 99 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 80 ~ 264 VAC, 113 ~ 370 VDC Input
