UVY1J682MRD

Obsolete

Nichicon

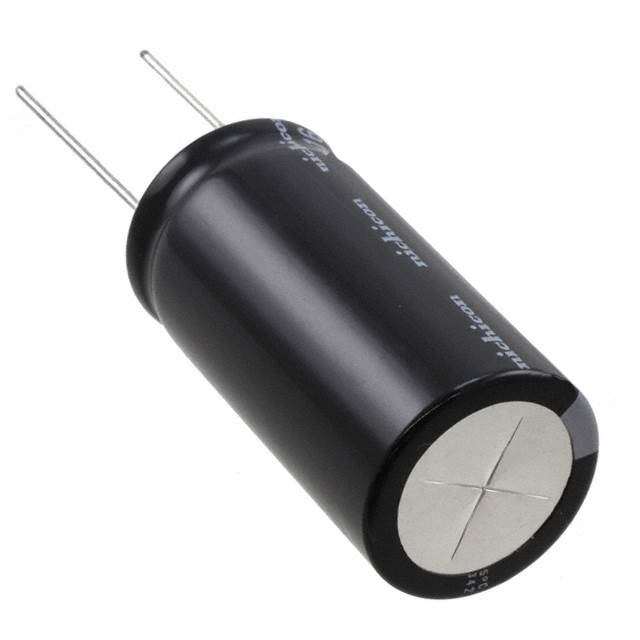

CAP ALUM 6800UF 20% 63V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiniature Type Taping Spec Datasheet

UVY1J682MRD

Obsolete

Nichicon

CAP ALUM 6800UF 20% 63V RADIAL

Deep-Dive with AI

DocumentsMiniature Type Taping Spec Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UVY1J Series

6800 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Miniature Type Taping Spec

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UVY1J682MRD	UVY1J Series

Applications	General Purpose	General Purpose
Capacitance	6800 µF	3.3 - 6800 µF
Height - Seated (Max)	-	12.5 - 42 mm
Height - Seated (Max)	-	0.492 - 1.654 in
Height - Seated (Max) [Max] [z]	2.047 in	0.512 - 2.047 in
Height - Seated (Max) [Max] [z]	52 mm	13 - 52 mm
Lead Spacing	0.492 in	0.079 - 0.492 in
Lead Spacing	12.5 mm	2 - 12.5 mm
Lifetime @ Temp.	2000 Hrs	1000 - 2000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	3.22 A	1.0695 - 960 A
Ripple Current @ Low Frequency	2.8 A	1.95 - 930 mA
Size / Dimension [diameter]	25 mm	5 - 25 mm
Size / Dimension [diameter]	0.984 "	0.197 - 0.984 in
Tolerance	20 %	20 %
Voltage - Rated	63 V	63 V

UVY1J Series

CAP ALUM 1000UF 20% 63V RADIAL

Part	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Mounting Type	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Voltage - Rated	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Package / Case	Lifetime @ Temp.	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon UVY1J102MHD1TN	20 %	1.063 in	27 mm	105 ░C	-55 °C	1000 µF	Through Hole	7.5 mm	0.295 in	1.0695 A	63 V	930 mA	0.63 in	16 mm	Polar	Radial, Can	2000 Hrs	General Purpose
Nichicon UVY1J682MRD	20 %	2.047 in	52 mm	105 ░C	-55 °C	6800 µF	Through Hole	12.5 mm	0.492 in	3.22 A	63 V	2.8 A	0.984 "	25 mm	Polar	Radial, Can	2000 Hrs	General Purpose
Nichicon UVY1J102MHD	20 %	1.063 in	27 mm	105 ░C	-55 °C	1000 µF	Through Hole	7.5 mm	0.295 in	1.0695 A	63 V	930 mA	0.63 in	16 mm	Polar	Radial, Can	2000 Hrs	General Purpose
Nichicon UVY1J101MPD	20 %	0.512 "	13 mm	105 ░C	-55 °C	100 µF	Through Hole	3.5 mm	0.138 in	300 mA	63 V	200 mA	0.315 "	8 mm	Polar	Radial, Can	1000 Hrs	General Purpose
Nichicon UVY1J331MPD	20 %	0.866 in	22 mm	105 ░C	-55 °C	330 µF	Through Hole	5 mm	0.197 in	765 mA	63 V	510 mA	0.394 in	10 mm	Polar	Radial, Can	2000 Hrs	General Purpose
Nichicon UVY1J332MRD	20 %			105 ░C	-55 °C	3.3 mF	Through Hole	10 mm	0.394 in	2.2425 A	63 V	1.95 A	0.787 in	20 mm	Polar	Radial, Can	2000 Hrs	General Purpose	42 mm	1.654 in
Nichicon UVY1J680MPD	20 %	0.512 "	13 mm	105 ░C	-55 °C	68 µF	Through Hole	3.5 mm	0.138 in	310 mA	63 V	155 mA	0.315 "	8 mm	Polar	Radial, Can	1000 Hrs	General Purpose
Nichicon UVY1J330MED1TD	20 %			105 ░C	-55 °C	33 ÁF	Through Hole	2.5 mm	0.098 in	200 mA	63 V	100 mA	0.248 in	6.3 mm	Polar	Radial, Can	1000 Hrs	General Purpose	12.5 mm	0.492 in
Nichicon UVY1J331MPD1TD	20 %	0.866 in	22 mm	105 ░C	-55 °C	330 µF	Through Hole	5 mm	0.197 in	765 mA	63 V	510 mA	0.394 in	10 mm	Polar	Radial, Can	2000 Hrs	General Purpose
Nichicon UVY1J680MPD1TA	20 %	0.512 "	13 mm	105 ░C	-55 °C	68 µF	Through Hole	3.5 mm	0.138 in	310 mA	63 V	155 mA	0.315 "	8 mm	Polar	Radial, Can	1000 Hrs	General Purpose
