PAB.M0.8GL.AC52JZ

Active

LEMO

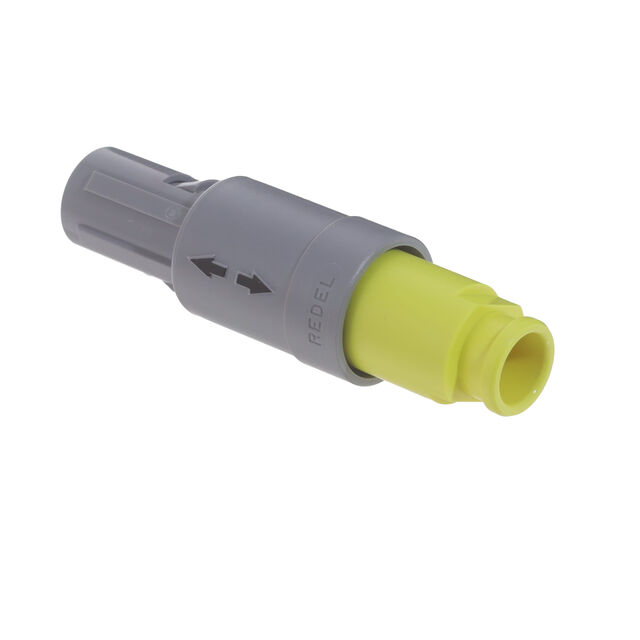

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAB.M0.8GL.AC52JZ

Active

LEMO

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.88
		10	$ 19.16
		25	$ 18.33
		50	$ 17.74
		100	$ 17.15
		250	$ 16.20
		500	$ 15.73

Description

General part information

PAB.M0 Series

8 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PAB.M0.8GL.AC52JZ	PAB.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Cable Opening	-	2.7 mm
Cable Opening	-	0.154 in
Cable Opening	-	3.9 mm
Cable Opening	-	0.106 in
Cable Opening	-	0.209 - 0.256 in
Cable Opening	-	5.3 - 6.5 mm
Cable Opening [Max] [custom]	0.205 in	0.205 in
Cable Opening [Max] [custom]	5.2 mm	5.2 mm
Cable Opening [Min] [custom]	0.157 in	0.157 in
Cable Opening [Min] [custom]	4 mm	4 mm
Color	Gray, Yellow	Gray, White, Green, Yellow, Blue, Red, Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	5 A	3 - 8 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	4 - 9
Operating Temperature [Max]	150 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	B	B
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M08	M05, M08, M04, M09, M06
Shielding	Unshielded	Unshielded

PAB.M0 Series

CONN PLUG MALE 5P GOLD SLDR CUP

Part	Contact Finish - Mating	Shell Size - Insert	Insert Material	Color	Mounting Type	Current Rating (Amps)	Fastening Type	Ingress Protection	Shielding	Connector Type	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Shell Material	Features	Backshell Material, Plating	Orientation	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Number of Positions	Cable Opening [custom]	Cable Opening [custom]
LEMO PAB.M0.5GL.AC52B	Gold	M05	Polyetheretherketone (PEEK)	Gray, White	Free Hanging (In-Line)	7 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic	0.157 in	0.205 in	4 mm	5.2 mm	150 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Backshell	Polysulfone (PSU)	B
LEMO PAB.M0.8GL.AC39GZ	Gold	M08	Polyetheretherketone (PEEK)	Gray	Free Hanging (In-Line)	5 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic					150 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Backshell	Polysulfone (PSU)	B	2.7 mm	0.154 in	3.9 mm	0.106 in	8
LEMO PAB.M0.4GL.AC39Z	Gold	M04	Polyetheretherketone (PEEK)	Gray	Free Hanging (In-Line)	8 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic					150 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Backshell	Polysulfone (PSU)	B	2.7 mm	0.154 in	3.9 mm	0.106 in	4
LEMO PAB.M0.8GL.AC52VZ	Gold	M08	Polyetheretherketone (PEEK)	Gray, Green	Free Hanging (In-Line)	5 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic	0.157 in	0.205 in	4 mm	5.2 mm	150 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Backshell	Polysulfone (PSU)	B					8
LEMO PAB.M0.8GL.AC52JZ	Gold	M08	Polyetheretherketone (PEEK)	Gray, Yellow	Free Hanging (In-Line)	5 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic	0.157 in	0.205 in	4 mm	5.2 mm	150 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Backshell	Polysulfone (PSU)	B					8
LEMO PAB.M0.9GL.AC52A	Gold	M09	Polyetheretherketone (PEEK)	Blue, Gray	Free Hanging (In-Line)	3 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic	0.157 in	0.205 in	4 mm	5.2 mm	150 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Backshell	Polysulfone (PSU)	B					9
LEMO PAB.M0.6GL.AC39G	Gold	M06	Polyetheretherketone (PEEK)	Gray	Free Hanging (In-Line)	6 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic					150 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Backshell	Polysulfone (PSU)	B	2.7 mm	0.154 in	3.9 mm	0.106 in	6
LEMO PAB.M0.5GL.AC65R	Gold	M05	Polyetheretherketone (PEEK)	Gray, Red	Free Hanging (In-Line)	7 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic					150 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Backshell	Polysulfone (PSU)	B						0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PAB.M0.6GL.AC39V	Gold	M06	Polyetheretherketone (PEEK)	Gray, Green	Free Hanging (In-Line)	6 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic					150 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Backshell	Polysulfone (PSU)	B	2.7 mm	0.154 in	3.9 mm	0.106 in	6
LEMO PAB.M0.4TL.AC39N	Gold	M04	Polyetheretherketone (PEEK)	Black	Free Hanging (In-Line)	8 A	Detent Lock, Push-Pull	IP50	Unshielded	Male Pins, Plug	Plastic					170 °C	-50 °C	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetherimide (PEI)	Backshell	Polyetherimide (PEI)	B	2.7 mm	0.154 in	3.9 mm	0.106 in	4
