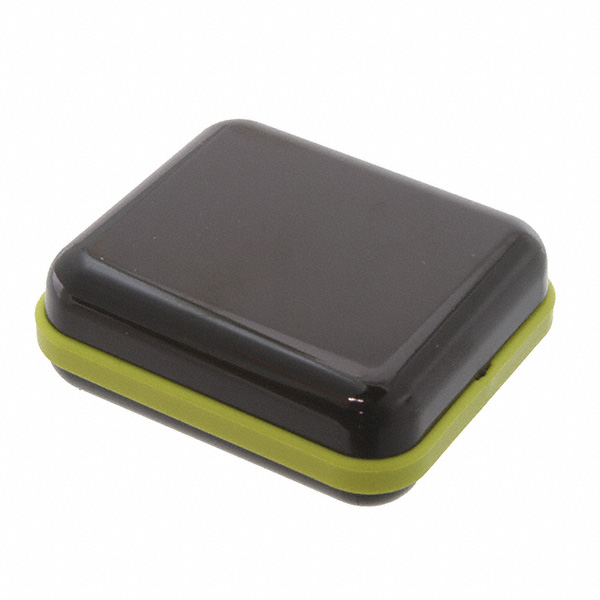

CX21ABKANG

Active

Serpac

ENCL IP67 BLK 1.68"X1.45"X0.61"

Search across all available documentation for this part.

Active

Serpac

ENCL IP67 BLK 1.68"X1.45"X0.61"

Technical Specifications

Parameters and characteristics for this part

Specification	CX21ABKANG

Area (L x W)	2.43 in²
Area (L x W)	15.7 cm²
Color	Black, Neon Green
Container Type	Enclosure
Design	Cover Included, Hand Held
Height [z]	0.61 in
Height [z]	15.49 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-2
Ratings	NEMA 4X, IP67, 13, 12
Size / Dimension [x]	42.67 mm
Size / Dimension [x]	1.68 "
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.83 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material Flammability Rating	Design	Material	Height [z]	Height [z]	Container Type	Area (L x W)	Area (L x W)	Color	Thickness	Thickness	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings
Serpac CX21ABKANO	UL94 V-2	Cover Included Hand Held	Plastic Polycarbonate	0.61 in	15.49 mm	Enclosure	2.43 in²	15.7 cm²	Black Neon Orange	2.03 mm	0.08 "	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX21ABKABL	UL94 V-2	Cover Included Hand Held	Plastic Polycarbonate	0.61 in	15.49 mm	Enclosure	2.43 in²	15.7 cm²	Black Blue	2.03 mm	0.08 "	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX21ABKAYL	UL94 V-2	Cover Included Hand Held	Plastic Polycarbonate	0.61 in	15.49 mm	Enclosure	2.43 in²	15.7 cm²		2.03 mm	0.08 "	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX21ABKABK	UL94 V-2	Cover Included Hand Held	Plastic Polycarbonate	0.61 in	15.49 mm	Enclosure	2.43 in²	15.7 cm²	Black	2.03 mm	0.08 "	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX21ABKANG	UL94 V-2	Cover Included Hand Held	Plastic Polycarbonate	0.61 in	15.49 mm	Enclosure	2.43 in²	15.7 cm²	Black Neon Green	2.03 mm	0.08 "	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX21ABKAOR	UL94 V-2	Cover Included Hand Held	Plastic Polycarbonate	0.61 in	15.49 mm	Enclosure	2.43 in²	15.7 cm²	Black Orange	2.03 mm	0.08 "	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.70

General part information

Enclosure Plastic, Polycarbonate Black, Neon Green Hand Held, Cover Included 1.680" L x 1.450" W (42.67mm x 36.83mm) X 0.610" (15.49mm)
