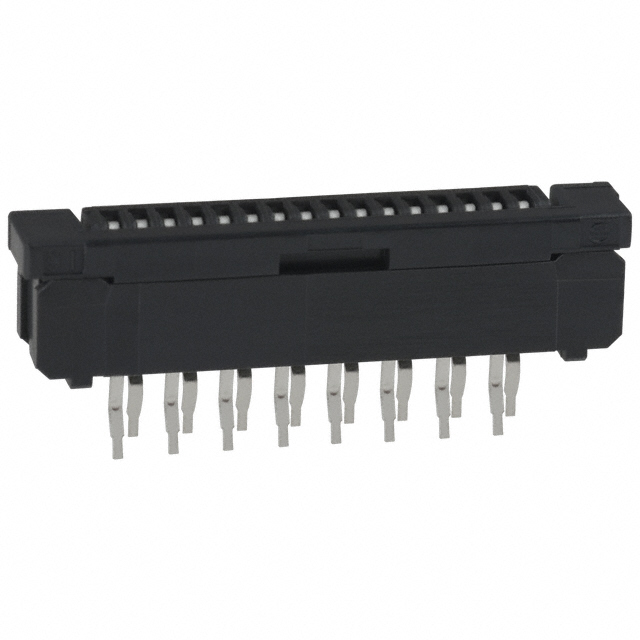

SLW16S-1C7LF

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC VERT 16POS 1MM PCB

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC VERT 16POS 1MM PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole

Technical documentation and resources

Specification	SLW16S-1C7LF	SLW16 Series

Actuator Color	-	Black
Actuator Material	Glass Filled, Polyamide (PA), Nylon	Glass Filled, Polyamide (PA), Nylon
Cable End Type	-	Tapered, Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided	Contacts, Vertical - 1 Sided, Contacts, Bottom
Contact Finish	Tin	Tin, Tin Alloy
Contact Material	Phosphor Bronze	Phosphor Bronze
FFC, FCB Thickness	0.33 mm	0.33 mm
FFC, FCB Thickness	-	0.3 - 0.33 mm
Flat Flex Type	FPC, FFC	FPC, FFC
Height Above Board	5.5 mm	5.5 mm
Height Above Board	0.217 in	0.217 in
Height Above Board	-	4 mm
Height Above Board	-	0.157 "
Housing Color	Black	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Locking Feature	Slide Lock	Slide Lock
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	20	20
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	16	16
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination	Kinked Pin	Kinked Pin
Voltage Rating	100 V	100 V

Part	Number of Positions	Connector/Contact Type	Contact Material	Housing Color	Flat Flex Type	Material Flammability Rating	Pitch [x]	Pitch [x]	Locking Feature	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Mounting Type	Contact Finish	Voltage Rating	Height Above Board	Height Above Board	FFC, FCB Thickness	Termination	Housing Material	Actuator Color	FFC, FCB Thickness [z]	Height Above Board [z]	Height Above Board [z]	Cable End Type
Amphenol ICC (FCI) SLW16S-1C7LF	16	Contacts, Vertical - 1 Sided	Phosphor Bronze	Black	FFC, FPC	UL94 V-0	0.039 in	1 mm	Slide Lock	Glass Filled, Nylon, Polyamide (PA)	85 °C	-55 °C	20	Through Hole	Tin	100 V	5.5 mm	0.217 in	0.33 mm	Kinked Pin	Polyamide (PA), Nylon, Glass Filled
Amphenol ICC (FCI) SLW16R-1C7	16	Contacts, Bottom	Phosphor Bronze	Black	FFC, FPC	UL94 V-0	0.039 in	1 mm	Slide Lock	Glass Filled, Nylon, Polyamide (PA)	105 ░C	-55 °C	20	Through Hole, Right Angle	Tin Alloy	100 V				Kinked Pin	Polyamide (PA), Nylon, Glass Filled	Black	0.3 mm, 0.33 mm	4 mm	0.157 "	Straight, Tapered
