Technical Specifications
Parameters and characteristics for this part

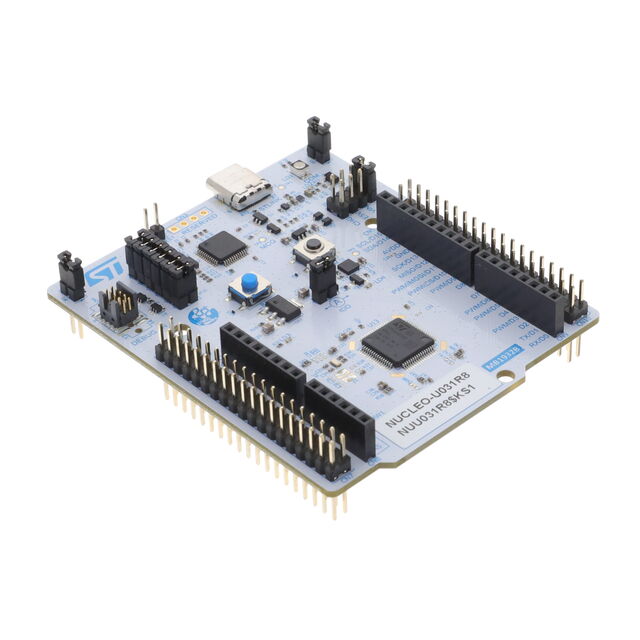

| Specification | NUCLEO-U031R8 |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Board(s) |
| Core Processor | ARM® Cortex®-M0+ |
| Interconnect System | ST Morpho, Arduino R3 Shield |
| Mounting Type | Fixed |
| Platform | Nucleo-64 |
| Suggested Programming Environment | STM32Cube, Keil MDK, IAR EW |
| Type | MCU 32-Bit |
| Utilized IC / Part | STM32U031 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NUCLEO-U031R8 Series
The STM32U031x4/6/8 devices are ultra-low-power microcontrollers based on the high-performance Arm®Cortex®-M0+ 32-bit RISC core operating at a frequency of up to 56 MHz.
The STM32U031x4/6/8 devices embed high-speed memories (up to 64-Kbyte flash memory and 12-Kbyte SRAM with hardware parity check), and an extensive range of enhanced I/Os and peripherals connected to APB and AHB buses, and a 32-bit multi-AHB bus matrix.
They also embed protection mechanisms for embedded flash memory and SRAM, such as readout protection and write protection.
Documents
Technical documentation and resources
