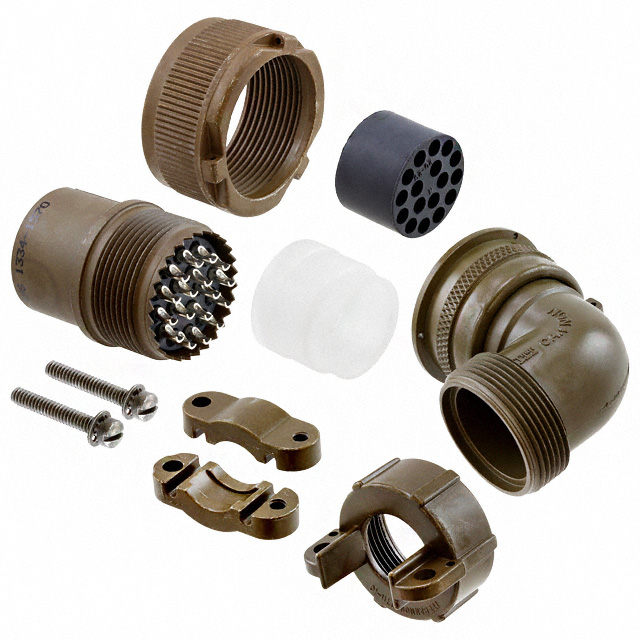

MS3108E20-29S

Active

ITT Cannon, LLC

CONN PLUG FMALE 17P SOLDER CUP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG FMALE 17P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E20-29S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	29
Shell Size - Insert [Min]	20
Voltage Rating	700 VDC, 500 VAC

Part	Connector Type	Shielding	Applications	Primary Material	Voltage Rating	Ingress Protection	Color	Shell Finish	Orientation	Contact Material	Grade	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Type	Insert Material	Number of Positions	Current Rating (Amps)	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Material
ITT Cannon, LLC MS3108E2024S	Female Sockets Plug	Unshielded	Aviation Industrial Marine Military	Metal	500 VAC 700 VDC	Environment Resistant	Olive Drab	Olive Drab Cadmium	N	Copper Alloy	Military	MIL-DTL-5015	-55 °C	125 °C	Silver	Free Hanging (In-Line) Right Angle	Plastic	4	13 A 46 A	Cable Clamp Coupling Nut	20	24	Aluminum Alloy
ITT Cannon, LLC MS3108E20-19P	Male Pins Plug	Unshielded	Marine Military	Metal		Environment Resistant	Olive Drab	Olive Drab Chromate over Cadmium	N	Copper Alloy		MIL-5015	-55 °C	125 °C	Silver	Free Hanging (In-Line) Right Angle	Neoprene			Cable Clamp Coupling Nut	20	19	Aluminum Alloy
ITT Cannon, LLC MS3108E20-19S	Female Sockets Plug			Metal	500 VAC 700 VDC	Environment Resistant	Olive Drab	Olive Drab Cadmium	N		Military	MIL-DTL-5015	-55 °C	125 °C	Silver	Free Hanging (In-Line) Right Angle			74 A	Cable Clamp Coupling Nut	20	19	Aluminum Alloy
ITT Cannon, LLC MS3108E20-29S	Female Sockets Plug			Metal	500 VAC 700 VDC	Environment Resistant	Olive Drab	Olive Drab Cadmium	N		Military	MIL-DTL-5015	-55 °C	125 °C	Silver	Free Hanging (In-Line) Right Angle			22 A	Cable Clamp Coupling Nut	20	29	Aluminum Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Circular Connector Plug, Female Sockets Solder Cup
