1.15156.0010000

Obsolete

RAFI USA

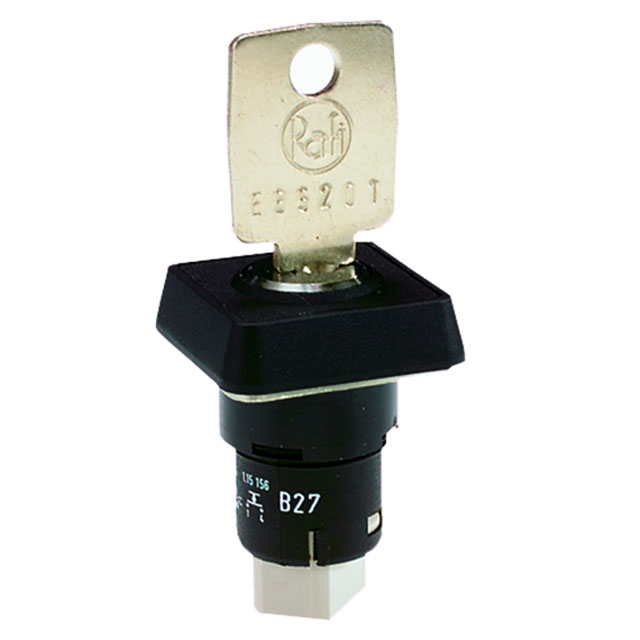

SWITCH KEYLK 2POS SPST 100MA 35V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH KEYLK 2POS SPST 100MA 35V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15156.0010000	1.15156 Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	SPST-NO	SPST-NO
Contact Finish	Gold	Gold
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	100 mA	100 mA
Depth Behind Flange	26.6 mm	26.6 mm
Electrical Life	50000 Cycles	50000 Cycles
Key Removable Positions	Center	Center, All
Number of Positions	2	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.1 mm	16.1 mm
Switch Function	Off-On	Off-On
Termination Style	Connector	Connector
Voltage Rating - DC	35 V	35 V

SWITCH KEYLK 2POS SPST 100MA 35V

Part	Electrical Life	Angle of Throw	Switch Function	Number of Positions	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Key Removable Positions	Contact Timing	Depth Behind Flange	Current Rating (Amps)	Voltage Rating - DC	Circuit	Contact Finish
RAFI USA 1.15156.0010000	50000 Cycles	90 °	Off-On	2	Connector	Flat Key	70 °C	-25 °C	16.1 mm	Center	Not Specified	26.6 mm	100 mA	35 V	SPST-NO	Gold
RAFI USA 1.15156.0110000	50000 Cycles	90 °	Off-On	2	Connector	Flat Key	70 °C	-25 °C	16.1 mm	All	Not Specified	26.6 mm	100 mA	35 V	SPST-NO	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Keylock Switch 2 Position SPST-NO 100mA (AC/DC) 35 VAC 35 VDC Panel Mount
