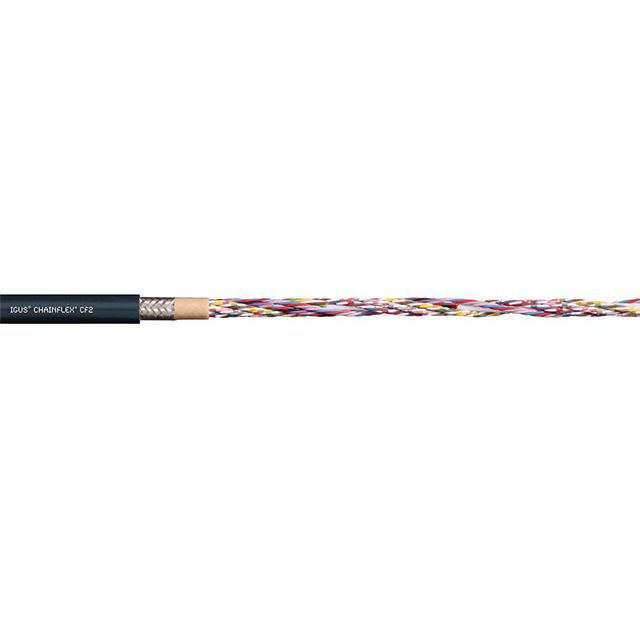

CF2-02-04

Active

Igus

PUR4C/24AWG CTRL 300V FLEX FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF2-02-04

Active

Igus

PUR4C/24AWG CTRL 300V FLEX FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 6.98
		3	$ 6.43
		5	$ 6.20
		7	$ 6.07
		10	$ 5.91
		25	$ 5.56
		50	$ 5.26
		100	$ 5.04

Description

General part information

CF2 Series

4 Conductor Multi-Conductor Cable Gray 24 AWG Braid Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF2-02-04	CF2 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)	Poly-Vinyl Chloride (PVC), Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare	Copper, Bare
Features	Oil Resistant, UV Resistant, Flame Retardant	Flame Retardant, Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.276 in	0.276 - 0.65 in
Jacket (Insulation) Diameter [diameter]	7.01 mm	7.01 - 16.51 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Gray	Gray
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	4	4 - 48
Ratings	UL Style 20317	UL Style 20317
Shield Coverage	90 %	90 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Usage	-	Industrial, Control
Voltage	300 V	300 - 500 V
Wire Gauge	24 AWG	24 - 26 AWG

CF2 Series

CABLE 48COND 26AWG GRY SHD 1=1FT

Part	Ratings	Jacket (Insulation) Material	Wire Gauge	Length	Conductor Material	Features	Voltage	Shield Material	Conductor Insulation	Shield Type	Jacket Color	Cable Type	Usage	Shield Coverage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Spool Size	Spool Size
Igus CF2-01-48	UL Style 20317	Polyurethane (PU)	26 AWG	Enter Number of Feet in Order Quantity	Copper, Bare	Flame Retardant, Oil Resistant	500 V	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Braid	Gray	Multi-Conductor	Industrial, Control	90 %	48	16.51 mm	0.65 in
Igus CF2-01-18	UL Style 20317	Polyurethane (PU)	26 AWG	Enter Number of Feet in Order Quantity	Copper, Bare	Flame Retardant, Oil Resistant, UV Resistant	300 V	Copper, Tinned	Thermoplastic Elastomer (TPE)	Braid	Gray	Multi-Conductor		90 %	18	10.49 mm	0.413 in	1000 ft	304.8 m
Igus CF2-02-24	UL Style 20317	Polyurethane (PU)	24 AWG	Enter Number of Feet in Order Quantity	Copper, Bare	Flame Retardant, Oil Resistant, UV Resistant	300 V	Copper, Tinned	Thermoplastic Elastomer (TPE)	Braid	Gray	Multi-Conductor		90 %	24	13.49 mm	0.531 in	1000 ft	304.8 m
Igus CF2-02-04	UL Style 20317	Polyurethane (PU)	24 AWG	Enter Number of Feet in Order Quantity	Copper, Bare	Flame Retardant, Oil Resistant, UV Resistant	300 V	Copper, Tinned	Thermoplastic Elastomer (TPE)	Braid	Gray	Multi-Conductor		90 %	4	7.01 mm	0.276 in	1000 ft	304.8 m
Igus CF2-02-18	UL Style 20317	Polyurethane (PU)	24 AWG	Enter Number of Feet in Order Quantity	Copper, Bare	Flame Retardant, Oil Resistant, UV Resistant	300 V	Copper, Tinned	Thermoplastic Elastomer (TPE)	Braid	Gray	Multi-Conductor		90 %	18	12.5 mm	0.492 in	1000 ft	304.8 m
Igus CF2-01-12	UL Style 20317	Polyurethane (PU)	26 AWG	Enter Number of Feet in Order Quantity	Copper, Bare	Flame Retardant, Oil Resistant, UV Resistant	300 V	Copper, Tinned	Thermoplastic Elastomer (TPE)	Braid	Gray	Multi-Conductor		90 %	12	9.5 mm	0.374 in	1000 ft	304.8 m
Igus CF2-02-08	UL Style 20317	Polyurethane (PU)	24 AWG	Enter Number of Feet in Order Quantity	Copper, Bare	Flame Retardant, Oil Resistant, UV Resistant	300 V	Copper, Tinned	Thermoplastic Elastomer (TPE)	Braid	Gray	Multi-Conductor		90 %	8	8.51 mm	0.335 "	1000 ft	304.8 m
