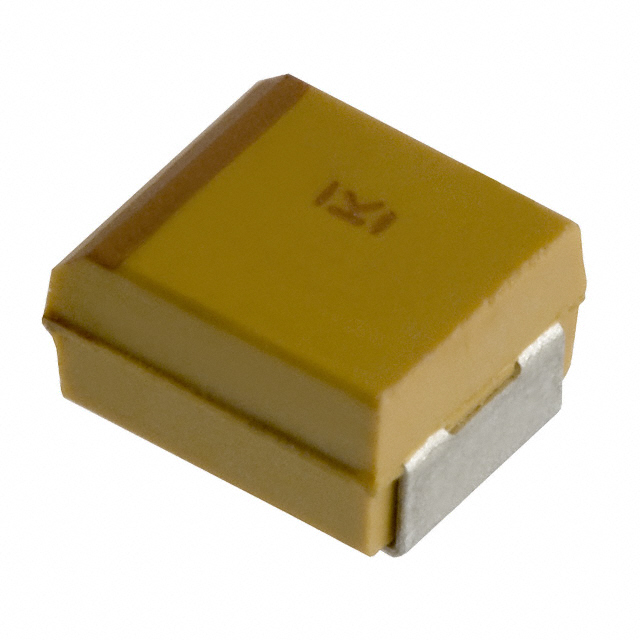

T491B226K006AH

Active

KEMET

CAPACITOR,22UF,6VDC,10-% TOL,10+% TOL ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T491B226K006AH

T491B226K006AH

Active

KEMET

CAPACITOR,22UF,6VDC,10-% TOL,10+% TOL ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet T491B226K006AH

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T491B226K006AH

Capacitance	22 µF
ESR (Equivalent Series Resistance)	2 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	6.3 V

T491B Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Features	Mounting Type	Tolerance	Type	Capacitance	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Manufacturer Size Code	Package / Case	Package / Case	Grade	Ratings	Qualification
KEMET T491B106K025AT	-55 °C	125 °C	25 VDC	General Purpose	Surface Mount	10 %	Molded	10 µF	3 Ohm	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric
KEMET T491B106M006ATAUTO2478	-55 °C	125 °C	6.3 V	Automotive	Surface Mount	20 %	Molded	10 µF	3.5 Ohms	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric	Automotive	AEC-Q200	AEC-Q200
KEMET T491B105K035AT4160	-55 °C	125 °C	35 V	General Purpose	Surface Mount	10 %	Molded	1 µF	5 Ohm	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric
KEMET T491B335K016AT4100	-55 °C	125 °C	16 V	General Purpose	Surface Mount	10 %	Molded	3.3 µF	3.5 Ohms	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric
KEMET T491B105K035AT7280	-55 °C	125 °C	35 V	General Purpose	Surface Mount	10 %	Molded	1 µF	5 Ohm	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric
KEMET T491B226K016AT7634	-55 °C	125 °C	16 V	General Purpose	Surface Mount	10 %	Molded	22 µF	2.2 Ohms	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric
KEMET T491B226K006AH	-55 °C	125 °C	6.3 V	General Purpose	Surface Mount	10 %	Molded	22 µF	2 Ohm	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric
KEMET T491B226M016AT42807333	-55 °C	125 °C	16 V	General Purpose	Surface Mount	20 %	Molded	22 µF	2.2 Ohms	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric
KEMET T491B475K016AH2678	-55 °C	125 °C	16 V	General Purpose	Surface Mount	10 %	Molded	4.7 µF	3.5 Ohms	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric
KEMET T491B106K010AT4818	-55 °C	125 °C	10 V	General Purpose	Surface Mount	10 %	Molded	10 µF	3 Ohm	0.11 in	2.8 mm	0.138 "	3.5 mm	2.1 mm	0.083 "	2000 Hrs	B	1411	3528 Metric

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.20
Newark	Each (Supplied on Full Reel)	1	$ 0.21
		5000	$ 0.21
		10000	$ 0.19
		20000	$ 0.18
		30000	$ 0.17
		50000	$ 0.16

Description

General part information

T491B Series

22 µF Molded Tantalum Capacitors 6.3 V 1411 (3528 Metric) 2Ohm @ 100kHz
