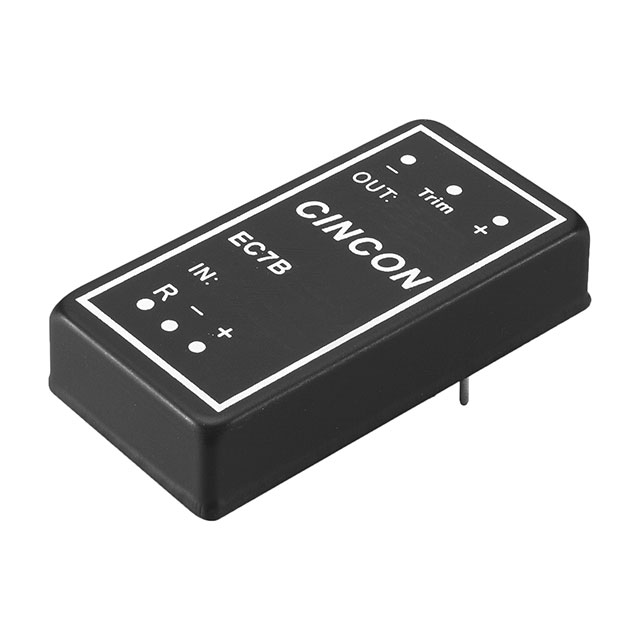

EC7B-48D12S

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-12V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC7B-48D12S

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-12V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC7B-48D12S

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active High, Enable
Current - Output (Max)	835 mA
Current - Output (Max)	835 mA
Efficiency	90 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

EC7B-48 Series

Part	Type	Features	Power (Watts)	Mounting Type	Voltage - Output 1	Standard Number	Package / Case	Efficiency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Control Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Number of Outputs	Approval Agency	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Cincon Electronics Co. LTD EC7B-48S25N	Isolated Module	OCP OVP Remote On/Off SCP UVLO	15 W	Through Hole	2.5 V	60950-1	6-DIP Module	87 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	1	CE cURus	6 A
Cincon Electronics Co. LTD EC7B-48S18NS	Isolated Module	OCP OVP Remote On/Off SCP UVLO	11 W	Through Hole	1.8 V	60950-1	6-DIP Module	86 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	1	CE cURus	6 A
Cincon Electronics Co. LTD EC7B-48D12NS	Isolated Module	OCP OVP Remote On/Off SCP UVLO	20 W	Through Hole	12 V	60950-1	6-DIP Module	90 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	2	CE cURus		-12 V	835 mA	835 mA
Cincon Electronics Co. LTD EC7B-48D12	Isolated Module	OCP OVP Remote On/Off SCP UVLO	20 W	Through Hole	12 V	60950-1	6-DIP Module	90 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	2	CE cURus		-12 V	835 mA	835 mA
Cincon Electronics Co. LTD EC7B-48S18	Isolated Module	OCP OVP Remote On/Off SCP UVLO	11 W	Through Hole	1.8 V	60950-1	6-DIP Module	86 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	1	CE cURus	6 A
Cincon Electronics Co. LTD EC7B-48S25NS	Isolated Module	OCP OVP Remote On/Off SCP UVLO	15 W	Through Hole	2.5 V	60950-1	6-DIP Module	87 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	1	CE cURus	6 A
Cincon Electronics Co. LTD EC7B-48D12S	Isolated Module	OCP OVP Remote On/Off SCP UVLO	20 W	Through Hole	12 V	60950-1	6-DIP Module	90 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	2	CE cURus		-12 V	835 mA	835 mA
Cincon Electronics Co. LTD EC7B-48S12	Isolated Module	OCP OVP Remote On/Off SCP UVLO	20 W	Through Hole	12 V	60950-1	6-DIP Module	89 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	1	CE cURus	1.67 A
Cincon Electronics Co. LTD EC7B-48S05	Isolated Module	OCP OVP Remote On/Off SCP UVLO	20 W	Through Hole	5 V	60950-1	6-DIP Module	90 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	1	CE cURus	4 A
Cincon Electronics Co. LTD EC7B-48S18S	Isolated Module	OCP OVP Remote On/Off SCP UVLO	11 W	Through Hole	1.8 V	60950-1	6-DIP Module	86 %	ITE (Commercial)	85 °C	-40 °C	75 V	36 V	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.5 kV	1	CE cURus	6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 47.59

Description

General part information

EC7B-48 Series

Isolated Module DC DC Converter 2 Output 12V -12V 835mA, 835mA 36V - 75V Input
