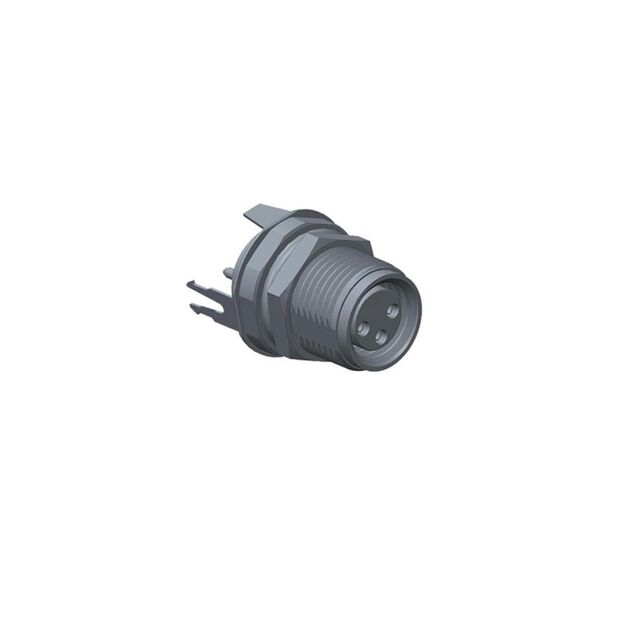

M8S-04PFFP-SF8001

Active

Amphenol LTW

M8 PANEL 180 PCB CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M8 PANEL 180 PCB CONN

Technical Specifications

Parameters and characteristics for this part

Specification	M8S-04PFFP-SF8001

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Ground, Board Lock
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Metal
Shell Size - Insert	M8-4
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Features	Shell Size - Insert	Shell Material	Current Rating (Amps)	Insert Material	Mounting Type	Shielding	Voltage Rating	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Finish	Contact Finish - Mating	Number of Positions	Connector Type	Orientation	Primary Material	Termination	Mounting Feature
Amphenol LTW M8S-04PFFP-SF8001	Board Lock Ground	M8-4	Metal	4 A	Polyamide (PA) Nylon Glass Filled	Panel Mount Through Hole	Shielded	30 VDC	IP68 - Dust Tight Waterproof	Silver	-40 °C	105 ░C	Copper Alloy	Nickel	Gold	4	Female Sockets Plug	Keyed	Metal	Solder	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder
