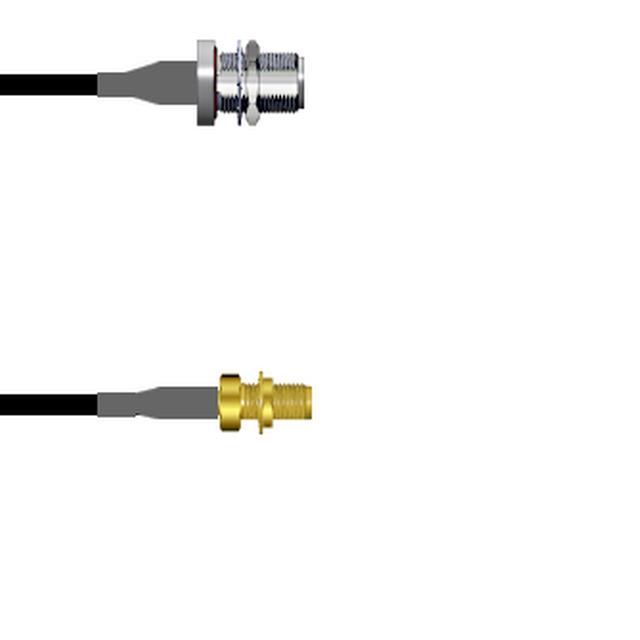

CBL ASSY SMA-NTYPE JACK-JACK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T02W0003009i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-JACK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T02W0003009i

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1T02W0 Series

Part	Frequency - Max [Max]	1st Connector	2nd Contact Gender	2nd Connector Mounting Type	Features	2nd Connector Mounting Feature	Cable Type	1st Connector Mounting Type	2nd Connector	Length	Length	1st Contact Gender	1st Connector Mounting Feature	Color	Style	Overall Impedance	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1T02W00030.5M	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-174	Panel Mount	N-Type Jack	50 cm	19.69 "	Female	Bulkhead - Front Side Nut	Black	SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1T02W0005084i	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-316	Panel Mount	N-Type Jack	2.1 m	84 in	Female	Bulkhead - Front Side Nut	Copper	SMA to N-Type	50 Ohms	7 ft
Amphenol Custom Cable Q-1T02W00032.5M	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-174	Panel Mount	N-Type Jack	2.5 m	98.4 in	Female	Bulkhead - Front Side Nut	Black	SMA to N-Type	50 Ohms	8.2 '
Amphenol Custom Cable Q-1T02W0005018i	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-316	Panel Mount	N-Type Jack			Female	Bulkhead - Front Side Nut	Copper	SMA to N-Type	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1T02W0005009i	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-316	Panel Mount	N-Type Jack	228.6 mm	9 "	Female	Bulkhead - Front Side Nut	Copper	SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1T02W0005.25M	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-316	Panel Mount	N-Type Jack			Female	Bulkhead - Front Side Nut	Copper	SMA to N-Type	50 Ohms			250 mm	9.843 "
Amphenol Custom Cable Q-1T02W0003012i	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-174	Panel Mount	N-Type Jack	304.8 mm	12 "	Female	Bulkhead - Front Side Nut	Black	SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1T02W0003108i	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-174	Panel Mount	N-Type Jack	2.7 m	108 in	Female	Bulkhead - Front Side Nut	Black	SMA to N-Type	50 Ohms	9 ft
Amphenol Custom Cable Q-1T02W0003009i	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-174	Panel Mount	N-Type Jack	228.6 mm	9 "	Female	Bulkhead - Front Side Nut	Black	SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1T02W0003006i	11 GHz	SMA Jack	Female	Panel Mount	Shielded	Bulkhead - Front Side Nut	RG-174	Panel Mount	N-Type Jack	152.4 mm	6 in	Female	Bulkhead - Front Side Nut	Black	SMA to N-Type	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.65
		25	$ 80.07
		50	$ 78.49
		100	$ 76.91
		250	$ 75.33

Description

General part information

Q-1T02W0 Series

Cable Assembly Coaxial SMA to N-Type RG-174 9.000" (228.60mm)
