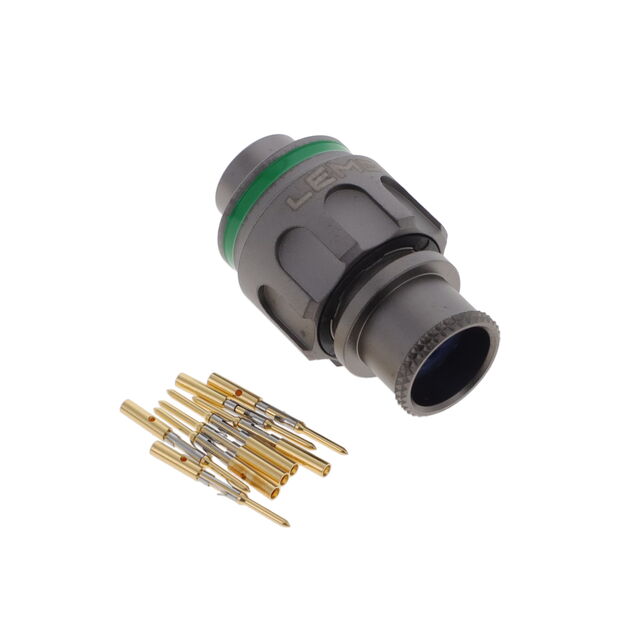

FGU.1M.308.XLCT

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FGU.1M.308.XLCT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	9.7 mm
Cable Opening [custom]	0.382 in
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	5 A
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	U
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	308
Shielding	Shielded
Termination	Crimp

CONN PLUG MALE 8POS GOLD CRIMP

Part	Number of Positions	Orientation	Termination	Cable Opening [custom]	Cable Opening [custom]	Applications	Contact Finish - Mating	Primary Material	Shielding	Ingress Protection	Connector Type	Color	Insert Material	Current Rating (Amps)	Features	Contact Material	Mounting Type	Shell Size - Insert	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]
LEMO FGU.1M.308.XLCT	8	U	Crimp	9.7 mm	0.382 in	Aerospace, Automotive, Aviation, Military	Gold	Metal	Shielded	IP68 - Dust Tight, Waterproof	Male Pins, Plug	Gray	Polyetheretherketone (PEEK)	5 A	Coupling Nut	Brass	Free Hanging (In-Line)	308	Aluminum Alloy	1 µm	39.4 µin	Nickel	-55 °C	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Plug, Male Pins Crimp
