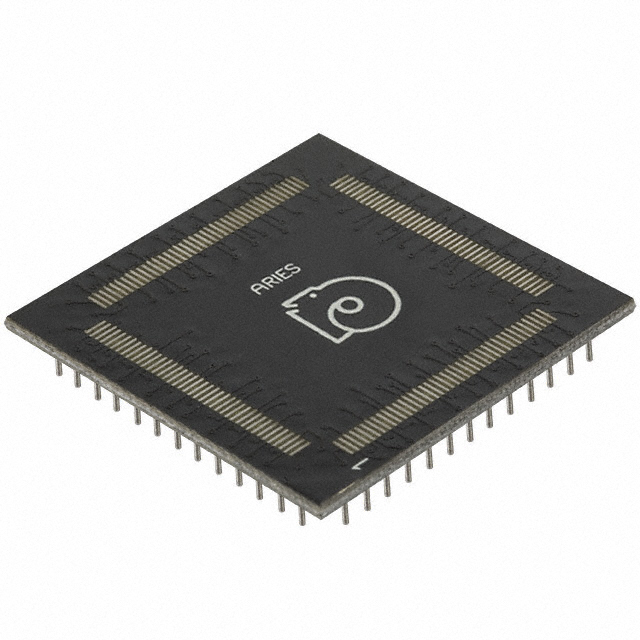

96-160M65

Active

Aries Electronics

SOCKET ADAPTER QFP TO 160PGA

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER QFP TO 160PGA

Technical Specifications

Parameters and characteristics for this part

Specification	96-160M65

Board Material	FR4 Epoxy Glass
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Copper
Contact Material - Post [custom]	Brass
Convert From (Adapter End)	QFP
Convert To (Adapter End)	PGA
Mounting Type	Through Hole
Number of Pins	160
Pitch - Mating	0.65 mm
Pitch - Mating	0.026 in
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in

SOCKET ADAPTER QFP TO 160PGA

Part	Pitch - Mating	Pitch - Mating	Convert To (Adapter End)	Convert From (Adapter End)	Termination Post Length	Termination Post Length	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Board Material	Termination	Contact Material - Post [custom]	Pitch - Post	Pitch - Post	Number of Pins	Contact Finish - Post
Aries Electronics 96-160M65	0.65 mm	0.026 in	PGA	QFP	3.18 mm	0.125 in	Copper	200 µin	5.08 µm	Through Hole	FR4 Epoxy Glass	Solder	Brass	2.54 mm	0.1 in	160	Tin-Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC Socket Adapter QFP To PGA Through Hole
