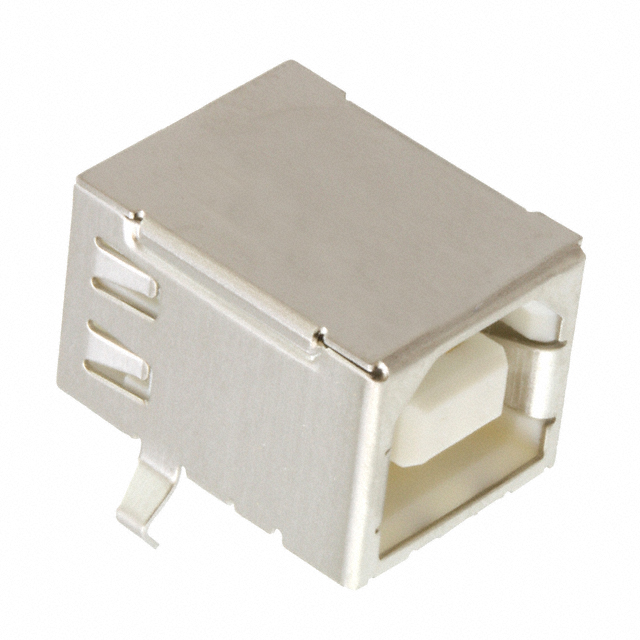

33UBBR-04SW11

Active

Amphenol CONEC

CONN RCPT USB1.1 TYPEB 4POS R/A

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN RCPT USB1.1 TYPEB 4POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	33UBBR-04SW11

Connector Type	USB-B
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Copper Alloy
Shielding	Unshielded
Specifications	USB 1.1
Termination	Solder
Voltage - Rated	30 VAC

Part	Mounting Type	Contact Finish	Number of Contacts [custom]	Voltage - Rated	Shielding	Shell/Shielding Material	Material Flammability Rating	Current Rating (Amps)	Number of Ports	Mounting Feature	Specifications	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Gender	Connector Type
Amphenol CONEC 33UBBR-04SW11	Through Hole Right Angle	Gold	4	30 VAC	Unshielded	Copper Alloy	UL94 V-0	1.5 A	1	Horizontal	USB 1.1	85 °C	-55 °C	Solder	Receptacle	USB-B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-B (USB TYPE-B) USB 1.1 Receptacle Connector 4 Position Through Hole, Right Angle
