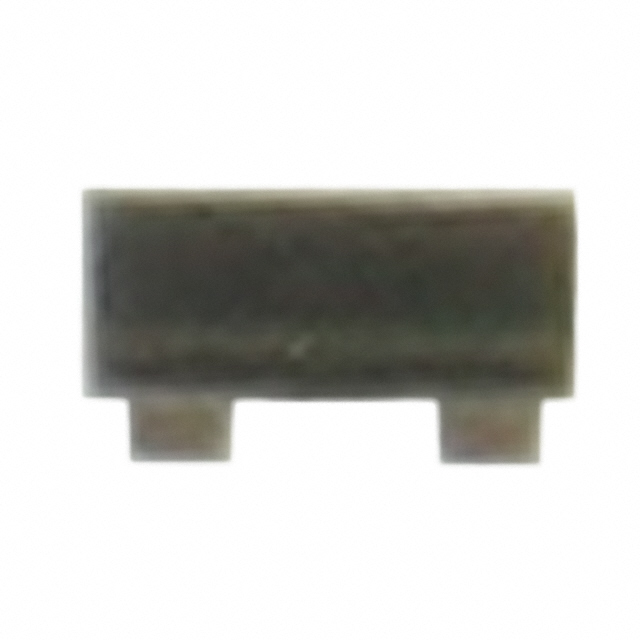

SMS7630-093
ObsoleteSkyworks Solutions Inc.
RF DIODE SCHOTTKY 1V 0201
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMS7630-093
ObsoleteSkyworks Solutions Inc.
RF DIODE SCHOTTKY 1V 0201
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS7630-093 |
|---|---|
| Diode Type | Schottky |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Supplier Device Package | 0603 Metric |
| Supplier Device Package | 0201 |
| Voltage - Peak Reverse (Max) [Max] | 1 V |
SMS7630 Series
| Part | Supplier Device Package | Diode Type | Package / Case | Voltage - Peak Reverse (Max) [Max] | Power Dissipation (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Max [Max] | Capacitance @ Vr, F | Supplier Device Package | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
Skyworks Solutions Inc. | SOT-23-3 | Schottky - 1 Pair Series Connection | SC-59 SOT-23-3 TO-236-3 | 1 V | 75 mw | -65 °C | 150 °C | 50 mA | |||
Skyworks Solutions Inc. | SOD-323 | Schottky - Single | SC-76 SOD-323 | 1 V | 75 mw | -65 °C | 150 °C | 50 mA | 0.3 pF | ||
Skyworks Solutions Inc. | 0201 | Schottky - Single | 0201 | 1 V | 75 mw | -65 °C | 150 °C | 50 mA | 0603 Metric | 0603 Metric | |
Skyworks Solutions Inc. | SC-79 | Schottky - Single | SC-79 SOD-523 | 1 V | 75 mw | -65 °C | 150 °C | 50 mA | |||
Skyworks Solutions Inc. | 0201 | Schottky | 0201 | 1 V | 0603 Metric | 0603 Metric | |||||
Skyworks Solutions Inc. | 0402 | Schottky - Single | 0402 (1005 Metric) | 1 V | 250 mW | -65 °C | 150 °C | 150 mA | 0.3 pF |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SMS7630 Series
RF Diode Schottky 1V 0201 (0603 Metric)
