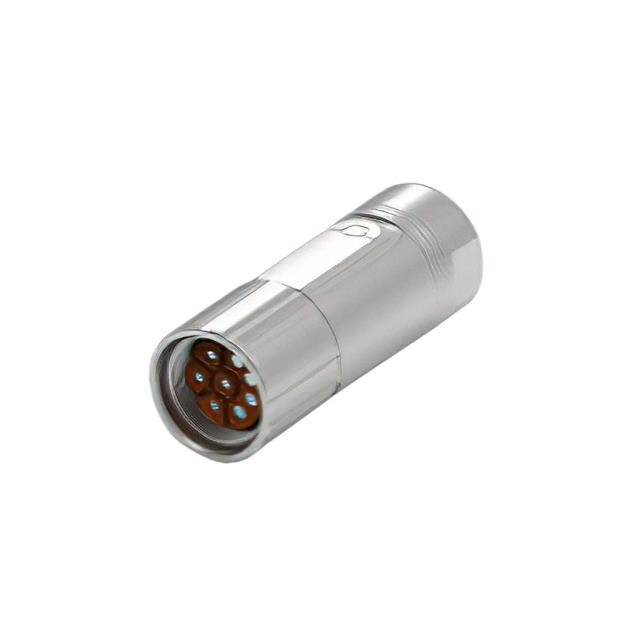

BSA078N00580235000

Active

TE Intercontec

CONN PLG HSG FMALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSA078N00580235000

Active

TE Intercontec

CONN PLG HSG FMALE 8POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSA078N00580235000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	8
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Female Sockets

BSA07 Series

Part	Features	Shielding	Includes	Mounting Type	Material Flammability Rating	Contact Shape	Type	Shell Material	Note	Ingress Protection	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Housing Color	Fastening Type	Shell Finish	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions
TE Intercontec BSA078N00580235000	Backshell Cable Clamp Coupling Nut	Shielded	1 Backshell 1 Cable Clamp 1 Connector	Free Hanging (In-Line)	UL94 V-0	Circular	For Female Sockets	Zinc Die Cast	Contacts Not Included	IP66/IP67	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Keyed	Silver	Push-Twist	Nickel	Plug Housing	3	8	4	PE
TE Intercontec BSA078N00550235000	Backshell Cable Clamp Coupling Nut	Shielded	1 Backshell 1 Cable Clamp 1 Connector	Free Hanging (In-Line)	UL94 V-0	Circular	For Female Sockets	Zinc Die Cast	Contacts Not Included	IP66/IP67	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Keyed	Silver	Push-Twist	Nickel	Plug Housing	3	8	4	PE
TE Intercontec BSA078N00420100000	Backshell Cable Clamp Coupling Nut	Shielded	1 Backshell 1 Cable Clamp 1 Connector	Free Hanging (In-Line)	UL94 V-0	Circular	For Female Sockets	Zinc Die Cast	Contacts Not Included	IP66/IP67	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Keyed	Silver	Push-Twist	Nickel	Plug Housing	3	8	4	PE
TE Intercontec BSA078N00580100000	Backshell Cable Clamp Coupling Nut	Shielded	1 Backshell 1 Cable Clamp 1 Connector	Free Hanging (In-Line)	UL94 V-0	Circular	For Female Sockets	Zinc Die Cast	Contacts Not Included	IP66/IP67	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Keyed	Silver	Push-Twist	Nickel	Plug Housing	3	8	4	PE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 38.83
		10	$ 30.02
		25	$ 27.22
		50	$ 25.33
		100	$ 23.62
		250	$ 21.60

Description

General part information

BSA07 Series

8 (4 + 3 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut

Documents

Technical documentation and resources
