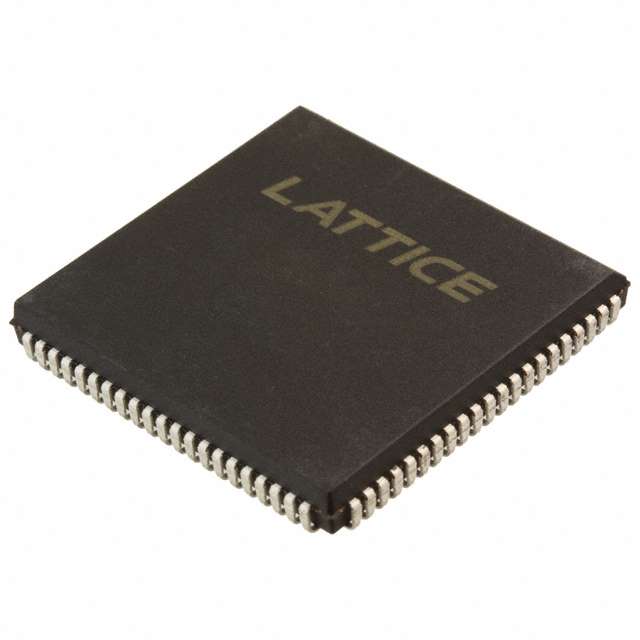

ISPLSI 2064A-80LJN84I

Obsolete

LATTICE SEMICONDUCTOR

IC CPLD 64MC 15NS 84PLCC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ISPLSI 2064A-80LJN84I

Obsolete

LATTICE SEMICONDUCTOR

IC CPLD 64MC 15NS 84PLCC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISPLSI 2064A-80LJN84I

Delay Time tpd(1) Max [Max]	15 ns
Mounting Type	Surface Mount
Number of Gates	2000
Number of I/O	64
Number of Logic Elements/Blocks	16
Number of Macrocells	64
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	84-LCC (J-Lead)
Programmable Type	In System Programmable
Supplier Device Package	84-PLCC (29.31x29.31)
Voltage Supply - Internal [Max]	5.5 V
Voltage Supply - Internal [Min]	4.5 V

ISPLSI 2064A Series

Part	Supplier Device Package	Package / Case	Number of Macrocells	Operating Temperature [Max]	Operating Temperature [Min]	Delay Time tpd(1) Max [Max]	Number of I/O	Number of Logic Elements/Blocks	Number of Gates	Mounting Type	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Programmable Type
LATTICE SEMICONDUCTOR ISPLSI 2064A-80LJN84I	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	64	85 °C	-40 °C	15 ns	64	16	2000	Surface Mount	4.5 V	5.5 V	In System Programmable
LATTICE SEMICONDUCTOR ISPLSI 2064A-125LJ84	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	64	70 °C	0 °C	7.5 ns	64	16	2000	Surface Mount	4.75 V	5.25 V	In System Programmable
LATTICE SEMICONDUCTOR ISPLSI 2064A-100LJ84	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	64	70 °C	0 °C	10 ns	64	16	2000	Surface Mount	4.75 V	5.25 V	In System Programmable
LATTICE SEMICONDUCTOR ISPLSI 2064A-125LT100	100-TQFP (14x14)	100-LQFP	64	70 °C	0 °C	7.5 ns	64	16	2000	Surface Mount	4.75 V	5.25 V	In System Programmable
LATTICE SEMICONDUCTOR ISPLSI 2064A-80LT100	100-TQFP (14x14)	100-LQFP	64	70 °C	0 °C	15 ns	64	16	2000	Surface Mount	4.75 V	5.25 V	In System Programmable
LATTICE SEMICONDUCTOR ISPLSI 2064A-125LJN84	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	64	70 °C	0 °C	7.5 ns	64	16	2000	Surface Mount	4.75 V	5.25 V	In System Programmable
LATTICE SEMICONDUCTOR ISPLSI 2064A-80LJ84I	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	64	85 °C	-40 °C	15 ns	64	16	2000	Surface Mount	4.5 V	5.5 V	In System Programmable
LATTICE SEMICONDUCTOR ISPLSI 2064A-80LJN84	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	64	70 °C	0 °C	15 ns	64	16	2000	Surface Mount	4.75 V	5.25 V	In System Programmable
LATTICE SEMICONDUCTOR ISPLSI 2064A-80LJ84	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	64	70 °C	0 °C	15 ns	64	16	2000	Surface Mount	4.75 V	5.25 V	In System Programmable
LATTICE SEMICONDUCTOR ISPLSI 2064A-80LT100I	100-TQFP (14x14)	100-LQFP	64	85 °C	-40 °C	15 ns	64	16	2000	Surface Mount	4.5 V	5.5 V	In System Programmable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ISPLSI 2064A Series

IC CPLD 64MC 15NS 84PLCC

Documents

Technical documentation and resources
