6803435134F

Active

DIALIGHT

10MM HB/B PMI-12VDC

Search across all available documentation for this part.

Active

DIALIGHT

10MM HB/B PMI-12VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6803435134F	6803435 Series

Current	30 mA	30 mA
Lamp Color	Blue	Blue
Lens Size	-	12 mm
Millicandela Rating	245 mcd	245 - 5400 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.4 mm
Panel Cutout Dimensions	-	10.3 mm
Panel Cutout Dimensions	-	0.41 in
Panel Cutout Dimensions [diameter]	0.41 in	0.41 in
Panel Cutout Dimensions [diameter]	10.41 mm	10.41 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	12 V	6 - 12 V

10MM HB/B PMI-12VDC

Part	Voltage	Millicandela Rating	Current	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Panel Cutout Shape	Lamp Color	Type	Ratings	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle	Lens Size [diameter]
DIALIGHT 6803435234F	12 V	730 mcd	30 mA	0.37 in	9.4 mm	Round	Blue	LED	DC
DIALIGHT 6803435134F	12 V	245 mcd	30 mA			Round	Blue	LED	DC	0.41 in	10.41 mm
DIALIGHT 6803435124F	6 V	5400 mcd	30 mA			Round	Blue	LED	DC			10.3 mm	0.41 in	30 °	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

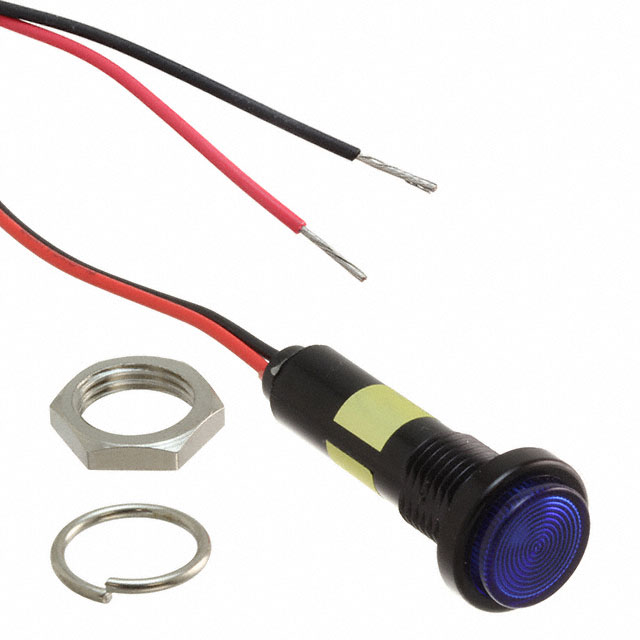

LED Panel Indicator Blue 12V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
