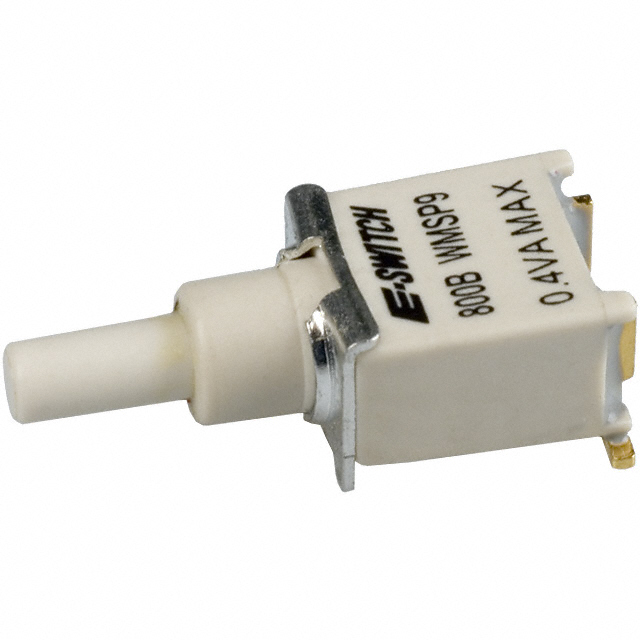

800BWSP9SM6RE
ActiveE-Switch
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
800BWSP9SM6RE
ActiveE-Switch
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 800BWSP9SM6RE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NO |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.89 | |
| 10 | $ 5.09 | |||
| 25 | $ 4.80 | |||
| 50 | $ 4.59 | |||
| 100 | $ 4.39 | |||
| 250 | $ 4.14 | |||
| Digi-Reel® | 1 | $ 5.89 | ||
| 10 | $ 5.09 | |||
| 25 | $ 4.80 | |||
| 50 | $ 4.59 | |||
| 100 | $ 4.39 | |||
| 250 | $ 4.14 | |||
| Tape & Reel (TR) | 500 | $ 3.96 | ||
| 1000 | $ 3.78 | |||
| 1500 | $ 3.69 | |||
| 2500 | $ 3.57 | |||
Description
General part information
800BWSP9 Series
Pushbutton Switch SPST-NO Standard Surface Mount, Right Angle
Documents
Technical documentation and resources
No documents available
