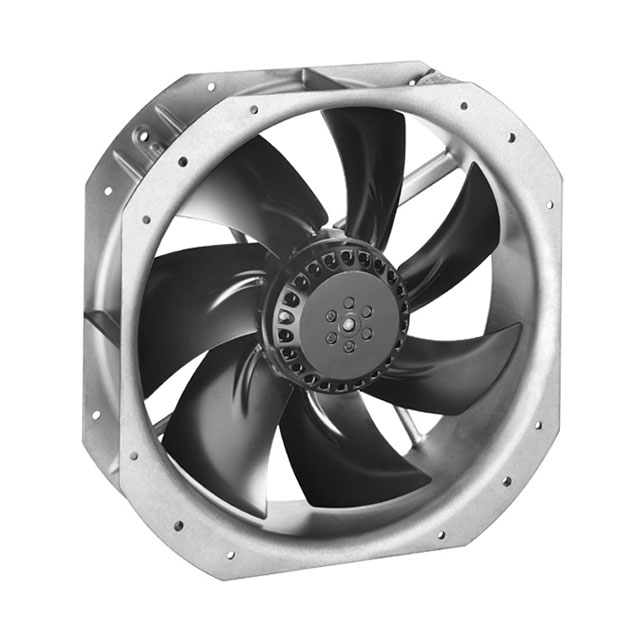

Specification	W2E250-HL08-07

Approval Agency	UL, CSA
Bearing Type	Ball
Current Rating	1.47 A
Fan Type	Tubeaxial
Ingress Protection	IP44
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature (Max)	86 °F
Operating Temperature (Min)	-13 °F
Power (Watts)	175 W
RPM	2650 RPM
Size / Dimension Height	280 mm
Size / Dimension Length	280 mm
Size / Dimension Shape	Square
Termination	Terminal Block
Voltage - Rated	115 V
Weight	6.1 lbs
Width	80 mm

W2E250 Series

AC Fans AC Axial Fan, 280x280x80mm, 230VAC, 50/60Hz, 1100CFM, 2600/2850RPM, Ball Bearing

Part	Bearing Type	Static Pressure	RPM	Voltage - Rated	Size / Dimension Shape	Size / Dimension Height	Size / Dimension Length	Fan Type	Operating Temperature (Min)	Operating Temperature (Max)	Width	Termination	Termination Count	Ingress Protection	Features	Approval Agency	Weight	Power (Watts)	Current Rating	Material - Frame	Material - Blade	Air Flow	Termination Leads Count	Termination Type	Size / Dimension Diameter	Noise
ebm-papst Inc. W2E250-HL06-01	Ball	0.401 in H2O	2700 RPM	230 VAC	Square	320 mm	320 mm	Tubeaxial	-13 °F	113 °F	80 mm	4 Terminals	4	IP44	Capacitor Thermal Overload Protection (TOP)	CCC CSA EAC UL	6.1 lbs	180 W	790 mA	Aluminum	Steel
ebm-papst Inc. W2E250-CL08-70	Ball			115 V	Round			Tubeaxial			85 mm	2 Wire Leads				CE CSA UL	3.1 lbs	160 W			Steel	1100 CFM	2 leads	Wire Leads	320 mm	71 dB
ebm-papst Inc. W2E250-DB13-52	Ball		2650 RPM	115 V	Square	370 mm	370 mm	Tubeaxial			83 mm			IP44		CSA UL	7.4 lbs	180 W	1.49 A	Steel	Steel
ebm-papst Inc. W2E250-CL06-75	Ball	0.341 in H2O	2600 RPM	230 VAC	Round			Tubeaxial	-13 °F	122 °F	97.7 mm	4 Wire Leads with Splice Terminals		IP44	Capacitor Thermal Overload Protector (TOP)	CE CSA UL		165 W	0.7 A	Steel	Steel		4	Wire Leads with Splice Terminals	320 mm
ebm-papst Inc. W2E250-CE65-02	Ball	0.522 in H2O	2750 RPM	230 VAC	Round			Tubeaxial	-13 °F	122 °F	85 mm	4 Wire Leads with Splice Terminals		IP44	Capacitor Thermal Overload Protector (TOP)	CE EAC		165 W	0.74 A	Steel	Steel		4	Wire Leads with Splice Terminals	320 mm
ebm-papst Inc. W2E250-HL08-07	Ball		2650 RPM	115 V	Square	280 mm	280 mm	Tubeaxial	-13 °F	86 °F	80 mm	Terminal Block		IP44		CSA UL	6.1 lbs	175 W	1.47 A	Aluminum	Steel
ebm-papst Inc. W2E250-CM06-01	Ball	0.341 in H2O	2600 RPM	230 VAC	Round			Tubeaxial	-13 °F	122 °F	90.4 mm	4 Wire Leads with Splice Terminals		IP44	Capacitor Thermal Overload Protector (TOP)	CE EAC		150 W					4	Wire Leads with Splice Terminals	320 mm
ebm-papst Inc. W2E250-HJ32-10	Ball	0.482 in H2O	2850 RPM	115 V	Square	320 mm	320 mm	Tubeaxial	-13 °F	167 °F	80 mm	Terminal Block		IP44	Capacitor Thermal Overload Protector (TOP)	CCC UL		175 W	1.47 A	Aluminum	Steel
ebm-papst Inc. W2E250-CL06-70	Ball			230 VAC	Round			Tubeaxial			85 mm	4 Wire Leads				CSA UL VDE	3.1 lbs	160 W			Steel	1100 CFM	4 leads	Wire Leads	320 mm	71 dB
ebm-papst Inc. W2E250-HJ28-01	Ball	0.482 in H2O	2850 RPM	230 VAC	Square	280 mm	280 mm	Tubeaxial	-13 °F	131 °F	80 mm	Terminal Block		IP44		CE CSA UL	7 lbs	160 W	0.7 A	Aluminum	Steel	1100 CFM				73 dB
