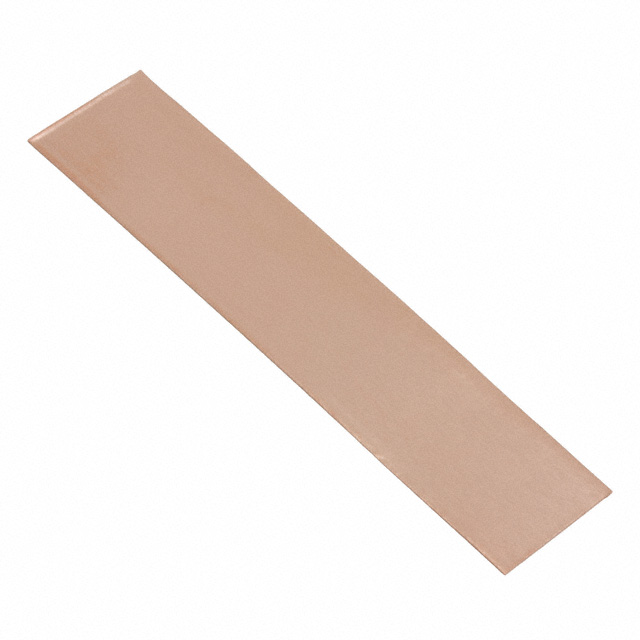

1125-0.5-2(5)

Active

3M (TC)

RF EMI SHLDING SHEET 2"X0.5" 5PK

Search across all available documentation for this part.

Active

3M (TC)

RF EMI SHLDING SHEET 2"X0.5" 5PK

Technical Specifications

Parameters and characteristics for this part

Specification	1125-0.5-2(5)

Adhesive	Acrylic, Non-Conductive, Single Sided
Length	50.8 mm
Length	2 in
Material	Copper Foil
Shape	Rectangular
Shelf Life	60 Months
Thickness - Overall	0.09 mm
Thickness - Overall	0.004 in
Type	Shielding Sheet

Part	Thickness - Overall	Thickness - Overall	Shape	Adhesive	Material	Type	Width [x]	Width	Shelf Life	Length	Length	Length [x]	Length [x]	Thickness - Overall [custom]	Thickness - Overall [custom]	Width
3M (TC) 5-1125-1.5	0.09 mm	0.004 in	Circular	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet	1.5 in	38.1 mm
3M (TC) 1125-0.5-2(5)	0.09 mm	0.004 in	Rectangular	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet			60 Months	50.8 mm	2 in
3M (TC) 5-1125-1/2-4R	0.09 mm	0.004 in	Rectangular	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet				101.6 mm	4 in
3M (TC) 5-1125-1-3R	0.09 mm	0.004 in	Rectangular	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet	1 in	25.4 mm		76.2 mm	3 in
3M (TC) 5-1125-1.5S	0.09 mm	0.004 in	Square	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet	1.5 in	38.1 mm		38.1 mm	1.5 "
3M (TC) 5-1125-1S			Square	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet	1 in	25.4 mm	60 Months			1 in	25.4 mm	0.004 "	0.1 mm
3M (TC) 5-1125-1/2	0.09 mm	0.004 in	Circular	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet			60 Months
3M (TC) 5-1125-3/4-4R	0.09 mm	0.004 in	Rectangular	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet		19.1 mm		101.6 mm	4 in					0.75 in
3M (TC) 1125-1-4(5)	0.09 mm	0.004 in	Rectangular	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet	1 in	25.4 mm		101.6 mm	4 in
3M (TC) 5-1125-1/2S	0.09 mm	0.004 in	Square	Acrylic Non-Conductive Single Sided	Copper Foil	Shielding Sheet			60 Months	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1125 Copper Foil Acrylic, Non-Conductive, Single Sided 0.500" (12.70mm) X 2.000" (50.80mm) X 0.004" (0.09mm)
