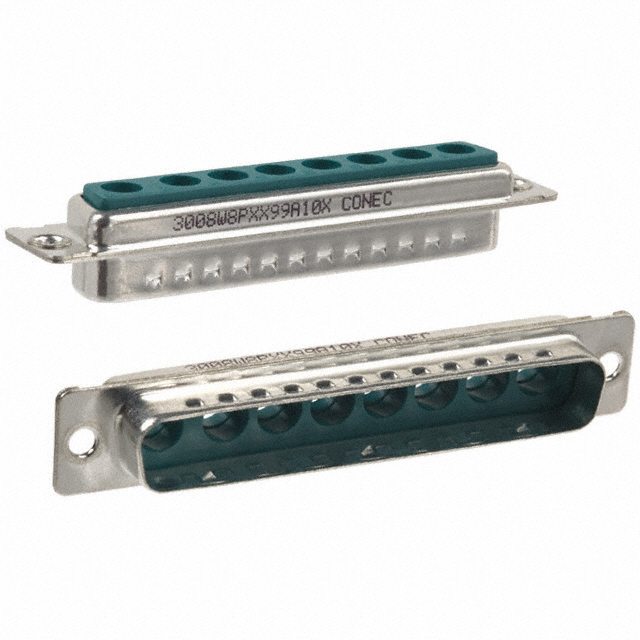

3008W8PXX99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 8POS

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 8POS

Technical Specifications

Parameters and characteristics for this part

Specification	3008W8PXX99A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Coax, Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	8 µm
Shell Finish Thickness	315 µin
Shell Size, Connector Layout	8W8
Shell Size, Connector Layout	4

Part	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Mounting Type	Mating Cycles	Shell Finish Thickness	Shell Finish Thickness	Contact Type	Connector Style	Color	Number of Positions	Flange Feature	Features	Dielectric Material	Shell Material, Finish	Number of Rows	Note	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol CONEC 3008W8PXX99A20X	8W8	4	Plug for Male Contacts
Amphenol CONEC 3008W8PXX99E60X	8W8	4	Plug for Male Contacts	Through Hole	500	8 µm	315 µin	Power	Combo D-Sub	Green	8	4-40 Board Side	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Steel Tin-Nickel Plated	1
Amphenol CONEC 3008W8PXX69E40X			Male Pins Plug
Amphenol CONEC 3008W8PXX99A10X	8W8	4	Plug for Male Contacts	Free Hanging (In-Line)		8 µm	315 µin	Coax Power	Combo D-Sub	Green	8	Housing/Shell (Unthreaded)	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled		1	Contacts Not Included	-55 °C	125 °C
Amphenol CONEC 3008W8PXX99E20X	8W8	4	Plug for Male Contacts	Through Hole	500			Power	Combo D-Sub	Green	8	Housing/Shell (4-40)	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled		1
Amphenol CONEC 3008W8PXX99A50X	8W8	4	Plug for Male Contacts	Through Hole	500	8 µm	315 µin	Power	Combo D-Sub	Green	8	Housing/Shell (4-40)	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Steel Tin-Nickel Plated	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug for Male Contacts Housing D-Sub, Combo Connector 8 (Coax or Power) Position
