PXP7088^0507

PXP7088/0507

Active

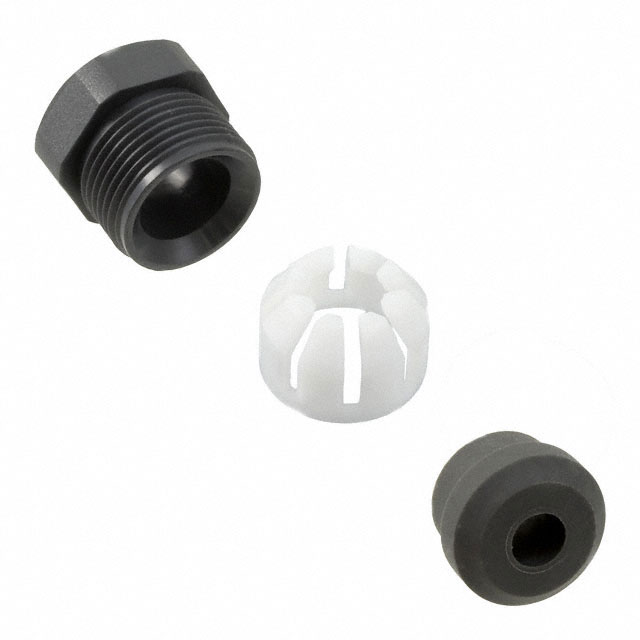

STANDARD CIRCULAR CONNECTOR CBLGLANDPACK 5 & 7MM GLAND, CAGE AND NUT

PXP7088^0507

PXP7088/0507

Active

STANDARD CIRCULAR CONNECTOR CBLGLANDPACK 5 & 7MM GLAND, CAGE AND NUT

Description Specifications Series Pricing CAD Documents

Description

General part information

Buccaneer 7000 Series

Connector Cable Gland Set Gray

Technical Specifications

Parameters and characteristics for this part

Specification	PXP7088/0507

Accessory Type	Cable Gland Set
Color	Gray
Contact Area (Max)	7 mm
Contact Area (Min)	5 mm
For Use With/Related Products	Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PXP7088/0507 | Datasheet

Buccaneer 7000 Series

Part	Features	Fastening Type	Material Flammability Rating	Number of Positions	Position Types	Contact Type	Housing Color	Shielding	Type	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Orientation	Shell Material	Mounting Type	Connector Type	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Note	Contact Finish - Mating	Current Rating	Voltage Rating	Backshell Material, Plating	Termination	Color	Contact Material	Accessory Type	For Use With/Related Products	Contact Area (Min)	Contact Area (Max)	Mounting Feature	Shell Finish
BULGIN LIMITED PXP7010/10S/CR/0709	Backshell Coupling Nut	Bayonet Lock	UL94 V-0	10	Power	Crimp Solder Cup	Gray	Unshielded	For Female Sockets	Plastic	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Keyed	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Plug Housing
BULGIN LIMITED PXP7011/10P/CR/1113	Backshell	Bayonet Lock	UL94 V-0	10	Power	Crimp Solder Cup	Gray	Unshielded	For Male Pins	Plastic	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Keyed	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Receptacle Housing	Circular	120 °C	-40 °C	Contacts Not Included
BULGIN LIMITED PXP7011/03P/ST/1315	Backshell	Bayonet Lock	UL94 V-0	3	PE Power			Unshielded		Plastic	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Keyed	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Male Pins Receptacle		120 °C	-40 °C		Nickel	25 A	600 V	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Screw	Gray	Brass
BULGIN LIMITED PXP7011/06P/ST/0507	Backshell	Bayonet Lock	UL94 V-0	6	Power			Unshielded		Plastic	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Keyed	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Male Pins Receptacle		120 °C	-40 °C		Nickel	10 A	600 V	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Screw	Gray	Brass
BULGIN LIMITED PXP7088/0507																										Gray		Cable Gland Set	Cable	5 mm	7 mm
BULGIN LIMITED PXP7011/32S/CR/0507	Backshell	Bayonet Lock	UL94 V-0	32	Power	Crimp Solder Cup	Gray	Unshielded	For Female Sockets	Plastic	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Keyed	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Receptacle Housing	Circular	120 °C	-40 °C	Contacts Not Included
BULGIN LIMITED PXP7010/32S/CR/0507	Backshell Coupling Nut	Bayonet Lock	UL94 V-0	32	Power	Crimp Solder Cup	Gray	Unshielded	For Female Sockets	Plastic	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Keyed	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Plug Housing	Circular	120 °C	-40 °C	Contacts Not Included
BULGIN LIMITED PXP7012/10P/CR		Bayonet Lock	UL94 V-0	10	Power	Crimp Solder Cup	Gray	Unshielded	For Male Pins	Plastic	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Keyed	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Panel Mount	Receptacle Housing																Bulkhead Rear Side Nut
BULGIN LIMITED PXM7010/32P/CR/0709	Backshell Coupling Nut	Bayonet Lock		32	Power	Crimp Solder Cup	Silver	Unshielded	For Male Pins	Metal	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Keyed	Zinc Alloy	Free Hanging (In-Line)	Plug Housing																	Nickel
BULGIN LIMITED PXM7010/10P/CR/0709/SN	Backshell Coupling Nut	Bayonet Lock		10	Power	Crimp Solder Cup	Silver	Shielded	For Male Pins	Metal	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Keyed	Zinc Alloy	Free Hanging (In-Line)	Plug Housing																	Nickel
