MN18TYW01-JG

Active

NKK Switches

SWITCH ROCKER MINI FLAT FRAME

Deep-Dive with AI

Search across all available documentation for this part.

MN18TYW01-JG

Active

NKK Switches

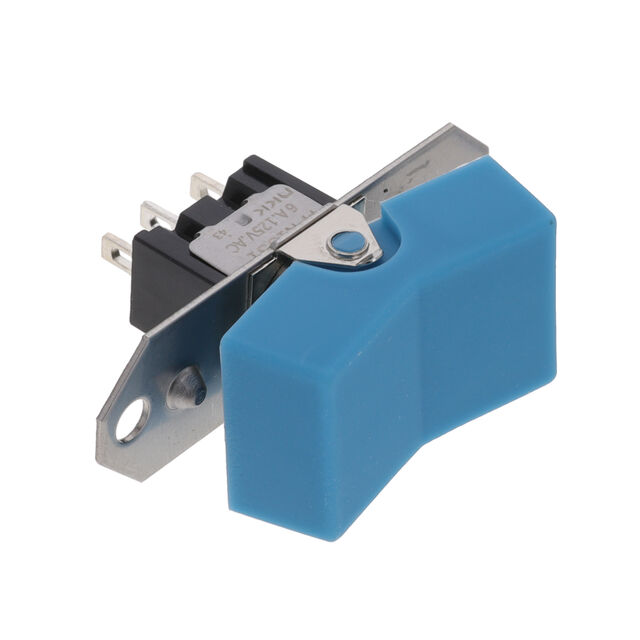

SWITCH ROCKER MINI FLAT FRAME

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MN18TYW01-JG

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	UL
Circuit	SPDT
Color - Actuator/Cap	Blue
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Mounting Type	Panel Mount, Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	16 mm
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MN18TY Series

Part	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Mounting Type	Electrical Life	Circuit	Approval Agency	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Marking	Color - Actuator/Cap
NKK Switches MN18TYW01-HH	Solder Lug	30 V	3 A 6 A	125 V	Paddle	Flange Panel Mount	25000 Steps	SPDT	UL	Mom-Off-Mom	-30 ░C	85 °C	28.5 mm	16 mm	No Marking
NKK Switches MN18TYW01-HG	Solder Lug	30 V	3 A 6 A	125 V	Actuator Arm Cap Required	Flange Panel Mount	25000 Steps	SPDT	UL	Mom-Off-Mom	-30 ░C	85 °C	28.5 mm	16 mm	No Marking	Blue
NKK Switches MN18TYW01-HB	Solder Lug	30 V	3 A 6 A	125 V	Paddle	Flange Panel Mount	25000 Steps	SPDT	UL	Mom-Off-Mom	-30 ░C	85 °C	28.5 mm	16 mm	No Marking	White
NKK Switches MN18TYW01-HC	Solder Lug	30 V	3 A 6 A	125 V	Paddle	Flange Panel Mount	25000 Steps	SPDT	UL	Mom-Off-Mom	-30 ░C	85 °C	28.5 mm	16 mm	No Marking	Red
NKK Switches MN18TYW03-HC
NKK Switches MN18TYW01-JG	Solder Lug	30 V	3 A 6 A	125 V	Concave (Standard V)	Flange Panel Mount	25000 Steps	SPDT	UL	Mom-Off-Mom	-30 ░C	85 °C	28.5 mm	16 mm	No Marking	Blue
NKK Switches MN18TYW01-HA	Solder Lug	30 V	3 A 6 A	125 V	Paddle	Flange Panel Mount	25000 Steps	SPDT	UL	Mom-Off-Mom	-30 ░C	85 °C	28.5 mm	16 mm	No Marking	Black
NKK Switches MN18TYW01	Solder Lug	30 V	3 A 6 A	125 V	Actuator Arm Cap Required	Flange Panel Mount	25000 Steps	SPDT	UL	Mom-Off-Mom	-30 ░C	85 °C	28.5 mm	16 mm	Varies by Cap
NKK Switches MN18TYW03-HG
NKK Switches MN18TYW01-JA	Solder Lug	30 V	3 A 6 A	125 V	Concave (Standard V)	Flange Panel Mount	25000 Steps	SPDT	UL	Mom-Off-Mom	-30 ░C	85 °C	28.5 mm	16 mm	No Marking	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.34
		10	$ 8.93
		100	$ 7.51
		1000	$ 5.56

Description

General part information

MN18TY Series

Rocker Switch SPDT 6A (AC), 3A (DC) 125 V Panel Mount, Flange
