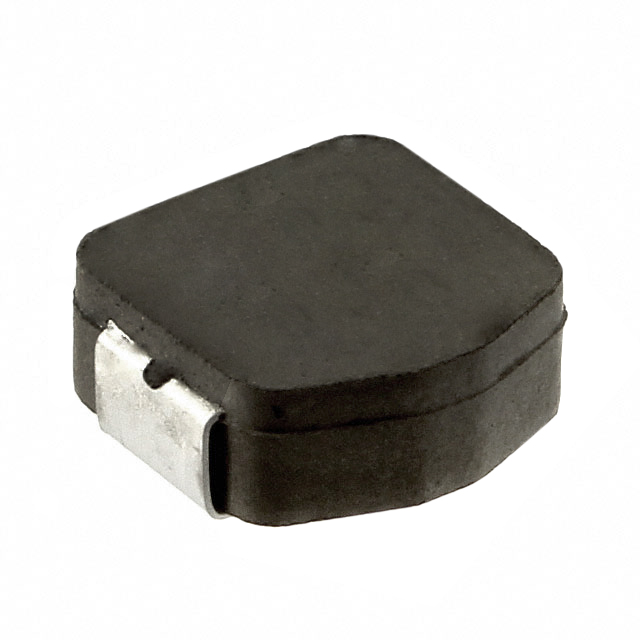

MPLCG0630L3R3 - MPLCG0630L-SERIES

MPLCG0630L3R3

Active
KEMET

SURFACE MOUNT POWER INDUCTOR, MPLCG SERIES, 3.3 H, 20%, SHIELDED, 0.03 OHM, 6.5 A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetKEM_L9005_MPLCG.pdf+3
MPLCG0630L3R3 - MPLCG0630L-SERIES

MPLCG0630L3R3

Active
KEMET

SURFACE MOUNT POWER INDUCTOR, MPLCG SERIES, 3.3 H, 20%, SHIELDED, 0.03 OHM, 6.5 A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetKEM_L9005_MPLCG.pdf+3

Technical Specifications

Parameters and characteristics for this part

SpecificationMPLCG0630L3R3
Current - Saturation (Isat)6.3 A
Current Rating (Amps)6.5 A
DC Resistance (DCR) [Max]30 mOhm
FeaturesLow DCR, Low Loss
Height - Seated (Max)3 mm
Height - Seated (Max) [Max]0.118 in
Inductance3.3 µH
Inductance Frequency - Test100 kHz
Material - CoreMetal Composite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseNonstandard
ShieldingShielded
Size / Dimension [x]7.5 mm
Size / Dimension [x]0.295 in
Size / Dimension [y]0.264 in
Size / Dimension [y]6.7 mm
Tolerance20 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.59
10$ 1.35
25$ 1.25
50$ 1.11
100$ 0.93
250$ 0.90
500$ 0.85
1000$ 0.80
Digi-Reel® 1$ 1.59
10$ 1.35
25$ 1.25
50$ 1.11
100$ 0.93
250$ 0.90
500$ 0.85
1000$ 0.80
Tape & Reel (TR) 2000$ 0.80
4000$ 0.77
6000$ 0.74
10000$ 0.71
NewarkEach (Supplied on Cut Tape) 1$ 1.83
10$ 1.27
25$ 1.21
50$ 1.15
100$ 1.09
250$ 1.06
500$ 1.02

Description

General part information

MPLCG0630 Series

3.3 µH Shielded Drum Core, Wirewound Inductor 6.5 A 30mOhm Max Nonstandard Low DCR, Low Loss
