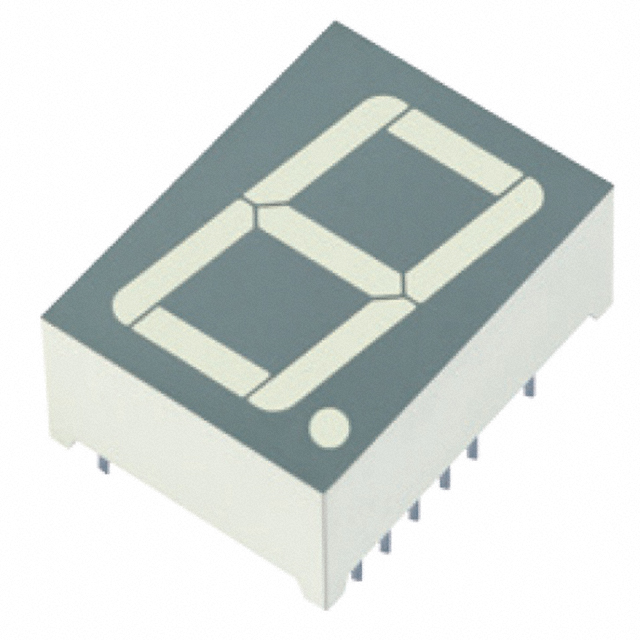

XDMYK20C-1

Active

SunLED

DISPLAY 7-SEG 0.8" SGL YLW 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDMYK20C-1

Active

SunLED

DISPLAY 7-SEG 0.8" SGL YLW 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XDMYK20C-1	XDMYK20 Series

Color	Yellow	Yellow
Common Pin	Common Cathode	Common Cathode, Common Anode
Current - Test	10 mA	10 mA
Digit/Alpha Size	20.32 mm	20.32 mm
Digit/Alpha Size	0.8 in	0.8 in
Display Type	7-Segment	7-Segment
Millicandela Rating	42 mcd	42 mcd
Number of Characters [custom]	1	1
Package / Case	-	16-DIP
Package / Case	-	0.6 - 15.24 mm
Package / Case [custom]	13 Leads	13 Leads
Package / Case [custom]	0.6 in, 15.24 mm	0.6 - 15.24 in
Package / Case [custom]	18-DIP	18-DIP
Power Dissipation (Max) [Max]	75 mw	75 mw
Size / Dimension	0.984 ", 0.417 ", 0.732 "	0.417 - 0.984 "
Size / Dimension	25 mm, 10.6 mm, 18.6 mm	10.6 - 25 mm
Voltage - Forward (Vf) (Typ)	1.95 V	1.95 V
Wavelength - Peak	590 nm	590 nm

XDMYK20 Series

DISPLAY 7-SEG 0.8" SGL YLW 18DIP

Part	Millicandela Rating	Color	Voltage - Forward (Vf) (Typ)	Current - Test	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Number of Characters [custom]	Power Dissipation (Max) [Max]	Common Pin	Display Type	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Size / Dimension	Size / Dimension	Package / Case	Package / Case
SunLED XDMYK20C-1	42 mcd	Yellow	1.95 V	10 mA	590 nm	20.32 mm	0.8 in	1	75 mw	Common Cathode	7-Segment	13 Leads	0.6 in, 15.24 mm	18-DIP	0.417 ", 0.732 ", 0.984 "	10.6 mm, 18.6 mm, 25 mm
SunLED XDMYK20A-1	42 mcd	Yellow	1.95 V	10 mA	590 nm	20.32 mm	0.8 in	1	75 mw	Common Anode	7-Segment				0.417 ", 0.732 ", 0.984 "	10.6 mm, 18.6 mm, 25 mm	16-DIP	0.6 in, 13 Leads, 15.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	200	$ 1.32

Description

General part information

XDMYK20 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Cathode 1.95V 10mA 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm) 18-DIP (0.600", 15.24mm), 13 Leads
