UF1JLWH

Active

25NS, 1A, 600V, ULTRA FAST RECOVERY RECTIFIER

Active

25NS, 1A, 600V, ULTRA FAST RECOVERY RECTIFIER

Description

General part information

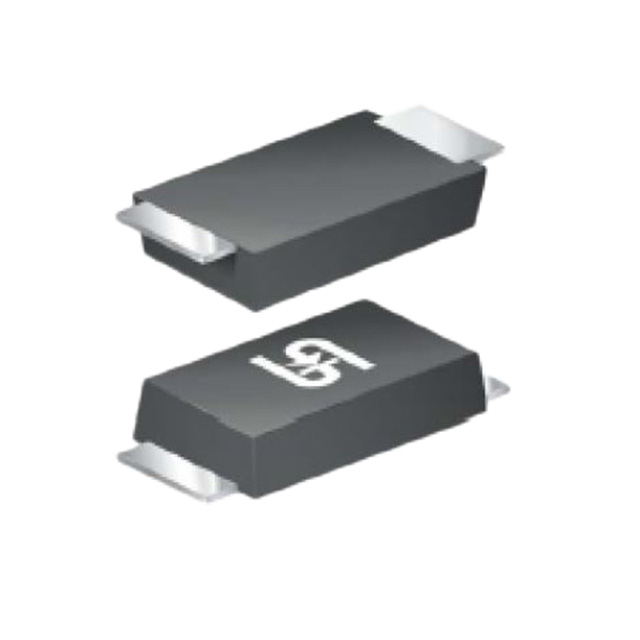

Diode 600 V 1A Surface Mount SOD-123W

Parameters and characteristics for this part

Specification	UF1JLWH

Capacitance	15 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	150 °C
Operating Temperature - Junction (Min)	-55 °C
Package / Case	SOD-123W
Package Name	SOD-123W
Reverse Recovery Time (trr)	25 ns
Speed - Fast Recovery (Maximum)	500 ns
Speed - Fast Recovery (Minimum)	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	600 V
Voltage - Forward (Vf) (Max)	1.5 V

Part	Current - Reverse Leakage	Reverse Recovery Time (trr)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Package / Case	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Technology	Voltage - DC Reverse (Vr) (Max)	Mounting Type	Capacitance	Voltage - Forward (Vf) (Max)	Package Name	Current - Average Rectified (Io)	Qualification	Grade
Taiwan Semiconductor Corporation UF1JLW	1 µA	25 ns	150 °C	-55 °C	SOD-123W	500 ns	200 mA	Standard	600 V	Surface Mount	15 pF	1.5 V	SOD-123W	1 A
Taiwan Semiconductor Corporation UF1JH	5 µA	75 ns	150 °C	-55 °C	Axial DO-204AL DO-41	500 ns	200 mA	Standard	600 V	Through Hole	17 pF	1.7 V	DO-204AL (DO-41)	1 A	AEC-Q101	Automotive
Taiwan Semiconductor Corporation UF1JLWH	1 µA	25 ns	150 °C	-55 °C	SOD-123W	500 ns	200 mA	Standard	600 V	Surface Mount	15 pF	1.5 V	SOD-123W	1 A
Taiwan Semiconductor Corporation UF1J	5 µA	75 ns	150 °C	-55 °C	Axial DO-204AL DO-41	500 ns	200 mA	Standard	600 V	Through Hole	17 pF	1.7 V	DO-204AL (DO-41)	1 A
Taiwan Semiconductor Corporation UF1J B0G	5 µA	75 ns	150 °C	-55 °C	Axial DO-204AL DO-41	500 ns	200 mA	Standard	600 V	Through Hole	17 pF	1.7 V	DO-204AL (DO-41)	1 A
