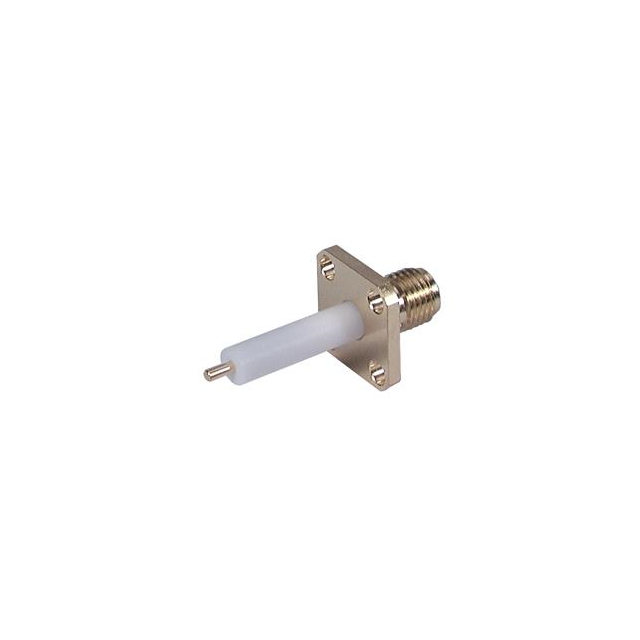

23_SMA-50-0-3/111_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

23_SMA-50-0-3/111_NE

Active

Huber+Suhner, Inc.

23_SMA-50-0-3/111_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	23_SMA-50-0-3/111_NE

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

23_SMA-50 Series

Part	Connector Style	Number of Ports	Body Material	Contact Termination	Mating Cycles	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Mounting Feature	Impedance	Body Finish	Shield Termination	Center Contact Material	Center Contact Plating	Frequency - Max [Max]	Housing Color	Mounting Type	Features
Huber+Suhner, Inc. 23_SMA-50-0-272/133_NH	SMA	1	Brass	Solder	500	Female Socket Jack	-65 ░C	165 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Flange	50 Ohms	White Bronze	Solder	Beryllium Copper	Gold	18 GHz	Silver
Huber+Suhner, Inc. 23_SMA-50-0-12/111_NE	SMA	1	Beryllium Copper	Solder	500	Female Socket Jack	-65 ░C	125 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Flange	50 Ohms	Gold	Solder	Beryllium Copper	Gold	18 GHz	Gold
Huber+Suhner, Inc. 23_SMA-50-0-62/199_NE	SMA	1	Stainless Steel	Solder	500	Female Socket Jack	-65 ░C	165 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Flange	50 Ohms		Solder	Beryllium Copper	Gold	18 GHz	Silver
Huber+Suhner, Inc. 23_SMA-50-0-11/111_NE	SMA	1	Beryllium Copper	Solder Cup	500	Female Socket Jack	-65 ░C	125 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Flange	50 Ohms	Gold	Solder	Beryllium Copper	Gold	18 GHz	Gold
Huber+Suhner, Inc. 23_SMA-50-0-3/111_NE	SMA	1	Beryllium Copper	Solder	500	Female Socket Jack	-65 ░C	125 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Flange	50 Ohms	Gold	Solder	Beryllium Copper	Gold	18 GHz	Gold	Panel Mount Through Hole	Extended Insulation
Huber+Suhner, Inc. 23_SMA-50-0-13/111_NE	SMA	1	Beryllium Copper	Solder	500	Female Socket Jack	-65 ░C	125 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Flange	50 Ohms	Gold	Solder	Beryllium Copper	Gold	18 GHz	Gold		Extended Insulation
Huber+Suhner, Inc. 23_SMA-50-0-63/199_NE
Huber+Suhner, Inc. 23_SMA-50-0-2/111_NE	SMA	1	Beryllium Copper	Solder	500	Female Socket Jack	-65 ░C	125 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Flange	50 Ohms	Gold	Solder	Beryllium Copper	Gold	18 GHz	Gold
Huber+Suhner, Inc. 23_SMA-50-0-41/133_NH	SMA	1	Brass	Solder Cup	500	Female Socket Jack	-65 ░C	125 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Flange	50 Ohms	White Bronze	Solder	Beryllium Copper	Gold	18 GHz	Silver
Huber+Suhner, Inc. 23_SMA-50-0-51/199_NE	SMA	1	Stainless Steel	Solder Cup	500	Female Socket Jack	-65 ░C	125 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Flange	50 Ohms		Solder	Beryllium Copper	Gold	18 GHz	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.00
		10	$ 23.93
		25	$ 21.69
		50	$ 20.17
		100	$ 18.79
		250	$ 17.17
		500	$ 16.08

Description

General part information

23_SMA-50 Series

SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
