0308001.UR

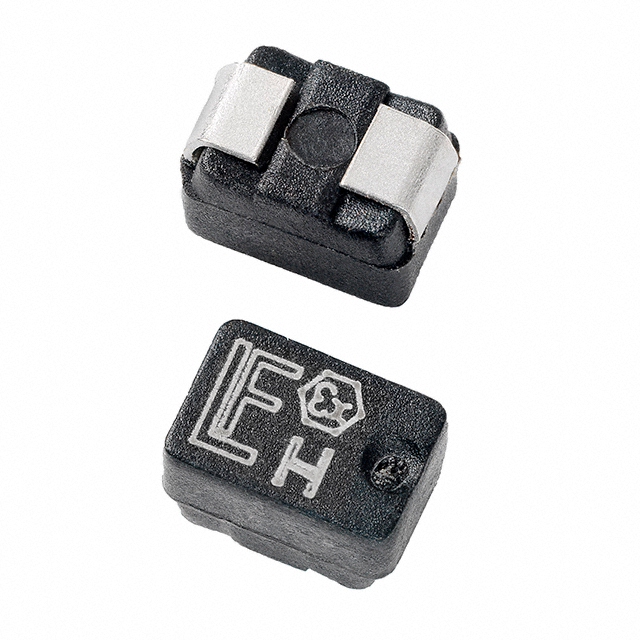

ActiveFUSE, SURFACE MOUNT, 1 A, FAST ACTING, 30 VDC, 5.4MM X 3.8MM, PICO 308 SERIES
0308001.UR
ActiveFUSE, SURFACE MOUNT, 1 A, FAST ACTING, 30 VDC, 5.4MM X 3.8MM, PICO 308 SERIES
Description
General part information
308001 Series
The 308 Series offers a range of surface mountable encapsulated fuses certified as intrinsically safe components that can be used in hazardous locations. Ideal for use in oil, gas, mine, chemical, pharmaceutical and process industries, the 308 Series surface mountable fuse was designed to limit the energy and temperature generated during its operation. The fuse design and its encapsulant are suitable for use in intrinsically safe apparatus and associated apparatus for peak voltage not exceeding 30V.
Technical Specifications
Parameters and characteristics for this part
| Specification | 0308001.UR |
|---|---|
| Applications | Hazardous Locations |
| Approval Agency | cURus, IEC, IECEx, EX |
| Breaking Capacity | 50 A |
| Current Rating | 1 A |
| DC Cold Resistance | 0.42 Ohms |
| Features | Intrinsically Safe |
| Fuse Type | Board Mount |
| Melting I²t | 0.1 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-SMD, J-Lead |
| Response Time | Slow Blow |
| Size / Dimension Height | 0.144 in |
| Size / Dimension Length | 0.213 in |
| Size / Dimension Width | 0.15 in |
| Voltage Rating - AC | 24 VAC |
| Voltage Rating - DC | 30 V |
