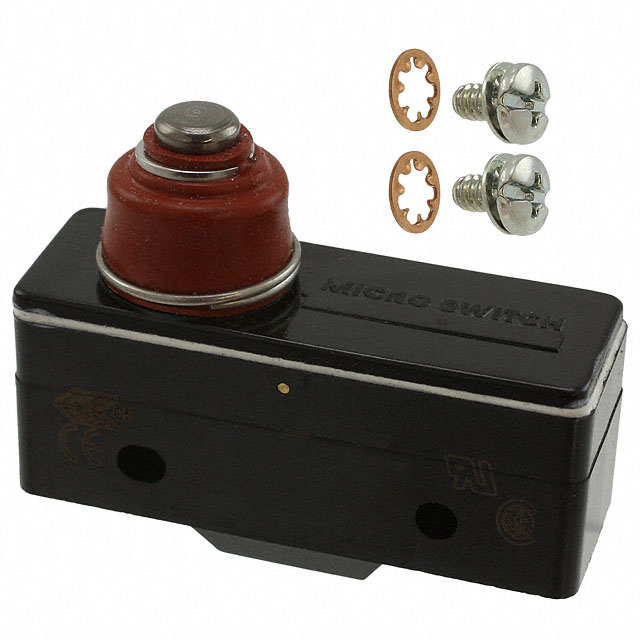

YZ-2RDS4

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACT SPST-NO 15A 125V

Part	Circuit	Current Rating (Amps)	Mounting Type	Operating Position	Operating Position	Differential Travel	Differential Travel	Ingress Protection	Termination Style	Operating Force [Max]	Operating Force [Min]	Overtravel	Overtravel	Voltage Rating - DC	Switch Function	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - AC	Release Force
Honeywell Sensing and Productivity Solutions YZ-2RDS4	SPST-NO	15 A, 500 mA	Chassis Mount	1.11 in	28.2 mm	0.002 in	0.05 mm	Splash Proof	Screw Terminal	538 gf	368 gf	1.5 mm	0.06 "	125 VDC	Off-Mom	Round (Pin Plunger)	85 °C	-55 °C	20000000 Cycles	125 V	113 gf
Honeywell Sensing and Productivity Solutions YZ-2RDS555116-D6-S	SPST-NO	15 A, 500 mA	Chassis Mount	1.11 in	28.2 mm	0.002 in	0.05 mm	Splash Proof		538 gf	227 gf	1.6 mm	0.062 in	125 VDC	Off-Mom	Round (Pin Plunger)	85 °C	-55 °C	20000000 Cycles	125 V	113 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 35.05

General part information

Switch SPST-NO Chassis Mount
