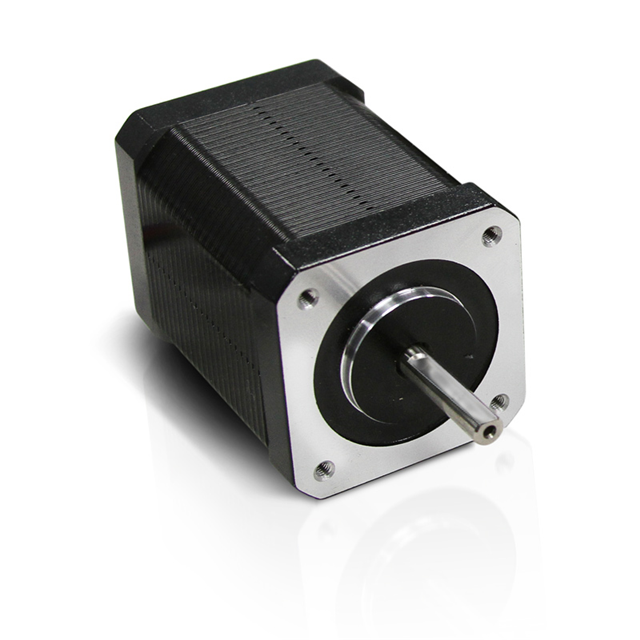

WO-4118C-01

Active

LIN ENGINEERING

STEPPER MOTOR

Search across all available documentation for this part.

Active

LIN ENGINEERING

STEPPER MOTOR

Technical Specifications

Parameters and characteristics for this part

STEPPER MOTOR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Steps per Revolution	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Features	Coil Resistance	Current Rating (Amps)	Coil Type	Step Angle	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Voltage - Rated	NEMA Frame Size	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Mounting Hole Spacing	Mounting Hole Spacing	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
LIN ENGINEERING WO-4118C-01	50 °C	-20 C	Wire Leads	200	0.197 in	5 mm	Flatted Shaft	2 Ohms	2 A	Bipolar	1.8 °	812.1 mNm	115 oz-in	24 VDC	17	24 mm	0.945 in	1.22 in	31 mm	42.4 mm	1.669 in	42.4 mm	1.669 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Frame Size 17 200.0 Step 2 A 24VDC
