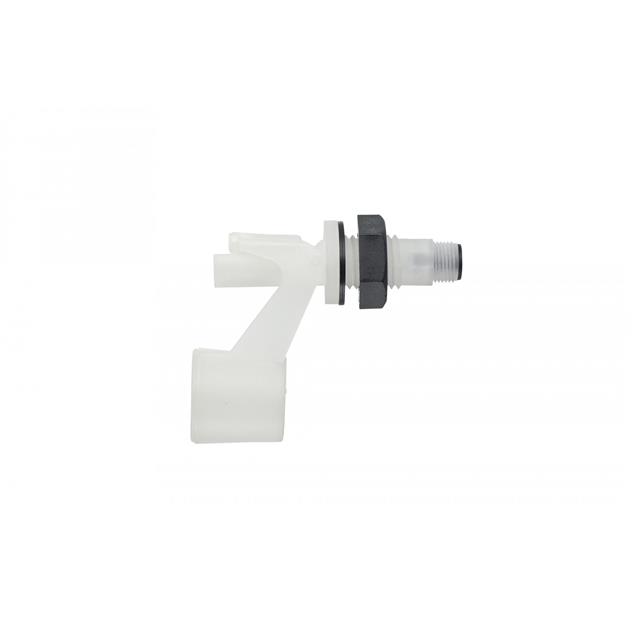

RSF18HFP

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	RSF18HFP

Current	1 A
Material - Housing & Prism	Polypropylene (PP)
Minimum Liquid Specific Gravity [Min]	0.8
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Output Configuration	SPST-NC
Switch Actuation Level	0.945 in
Switch Actuation Level	24 mm
Type	Liquid
Voltage Rating	300 VDC, 300 VAC

Part	Switch Actuation Level	Switch Actuation Level	Mounting Type	Material - Housing & Prism	Voltage Rating	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Current	Minimum Liquid Specific Gravity [Min]	Type
Sensata Technologies RSF18HFP	0.945 in	24 mm	M16x2 Thread Panel Mount	Polypropylene (PP)	300 VDC 300 VAC	SPST-NC	100 °C	-20 C	1 A	0.8	Liquid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 34.21

General part information

Liquid Level Sensor Switch (Single Float) SPST-NC Output Panel Mount, M16x2 Thread

Technical documentation and resources

No documents available
