100025363

Active

Telegartner Inc

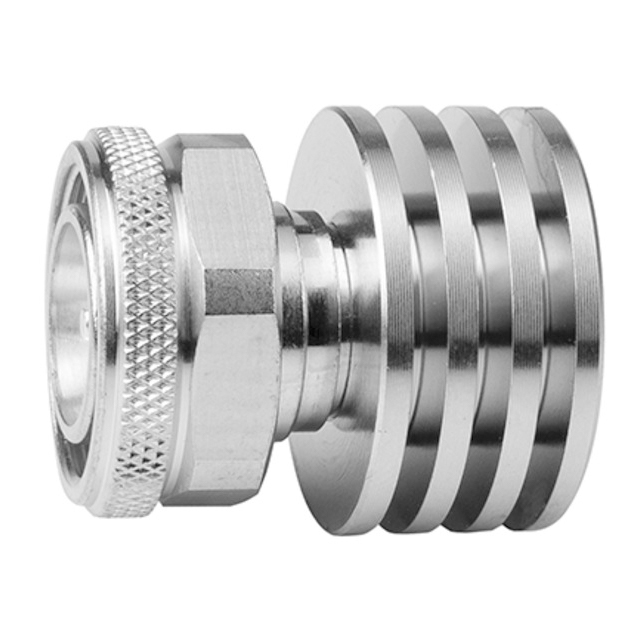

4.3-10 TERMLOAD MS 6GHZ 2W

Search across all available documentation for this part.

Active

Telegartner Inc

4.3-10 TERMLOAD MS 6GHZ 2W

Technical Specifications

Parameters and characteristics for this part

Specification	100025363

Body Finish	White Bronze
Connector Style	4.3/10
Connector Type	Male Pin, Plug
Contact Finish	Silver
Contact Material	Copper Alloy
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

4.3-10 TERMLOAD MS 6GHZ 2W

Part	Frequency - Max [Max]	Connector Style	Dielectric Material	Mounting Type	Contact Material	Connector Type	Impedance	Contact Finish	Body Finish
Telegartner Inc 100025363	7.5 GHz	4.3/10	Polytetrafluoroethylene (PTFE)	Cap, Free Hanging	Copper Alloy	Male Pin, Plug	50 Ohms	Silver	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin 4.3/10 50 Ohms

Technical documentation and resources

No documents available
