776298-1

Active

TE Connectivity Raychem Cable Protection

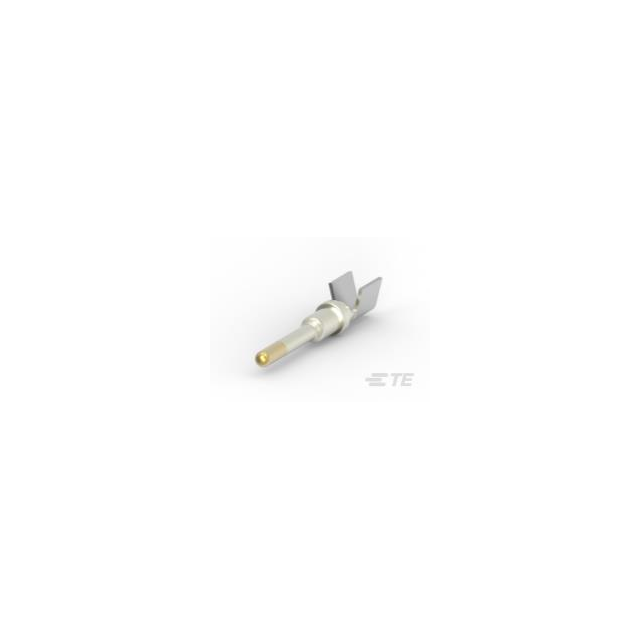

CONTACT PIN 16 SIZE CRIMP ST CABLE MOUNT 14-18AWG BAG

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONTACT PIN 16 SIZE CRIMP ST CABLE MOUNT 14-18AWG BAG

Technical Specifications

Parameters and characteristics for this part

Specification	776298-1

null

Part	Accessory Type	Number of Positions	For Use With/Related Products	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Contact Finish	Contact Termination	Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Fastening Type	Row Spacing	Row Spacing	Connector Type	Insulation Material	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Note	Color	Number of Rows	Mounting Type
TE Connectivity Raychem Cable Protection 1924487-3	Retainer Clip
TE Connectivity Raychem Cable Protection 2292800-1	Backshell	6	AMPSEAL Connectors
TE Connectivity Raychem Cable Protection 638112-3				2.54 µm	100 µin	Pin	Tin	Crimp	Stamped	14 AWG	18 AWG
TE Connectivity Raychem Cable Protection 638078-1				0.76 Ám	30 Áin	Pin	Gold	Crimp	Stamped	14 AWG	18 AWG
TE Connectivity Raychem Cable Protection 776308-1		4						Crimp				Male Pin	Locking Ramp	6.3 mm	0.248 in	Housing for Male Insert	Glass Filled Nylon Polyamide (PA)	0.236 in	6 mm	-40 °C	105 ░C	Contacts Not Included	Black	2	Surface Mount
TE Connectivity Raychem Cable Protection 1717672-1		2						Crimp				Male Pin	Latch Holder			Receptacle		0.177 in	4.5 mm	-40 °C	125 °C	Contacts Not Included	Black	1	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 776298-1
TE Connectivity Raychem Cable Protection 776524-1		4						Crimp				Female Socket	Latch Lock	5.3 mm	0.209 in	Plug		0.177 in	4.5 mm	-40 °C	125 °C	Contacts Not Included	Black	2	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2292799-3	Backshell	4	AMPSEAL Connectors
TE Connectivity Raychem Cable Protection 2292800-3	Backshell	6	AMPSEAL Connectors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Terminal, 18 – 14 AWG, .823 – 2.08 mm² Wire, Gold (Au), 1.59 mm [.062 in] Pin Diameter, Terminates To Wire, AMPSEAL 16
