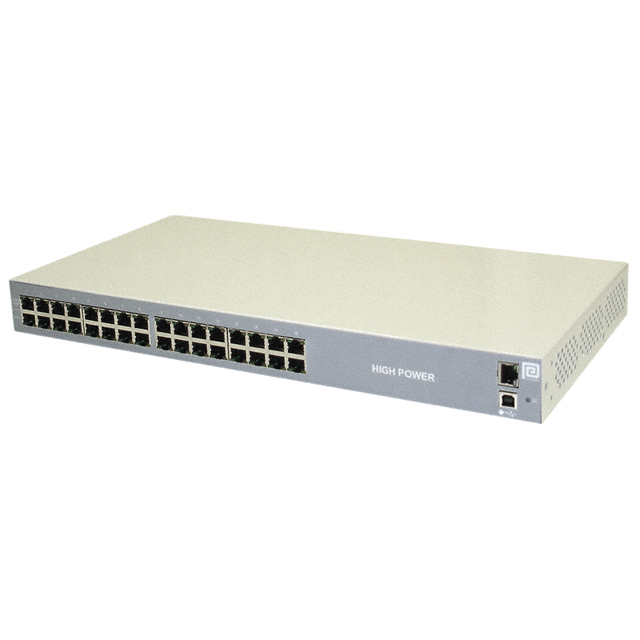

Specification	POE576U-16AT-N

Approval Agency	cULus, CE
Compliance	IEEE802.3at
Efficiency	75 %
Features	OCP, SCP, OTP, OVP
Input Connector	IEC 320-C14
Maximum Data Rate	1000 Mbps
Minimum Data Rate	10 Mbps
Mounting Type	Rack Mount
Note	AC Power Cord Sold Separately
Number of Ports	16
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Power), RJ45 (Data
Power (Watts) - Per Port	30 W
Size / Dimension Height	1.73 in
Size / Dimension Length	17.2 in
Size / Dimension Width	9.06 in
Type	Midspan Injector
Typical Data Rate	100 Mbps
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Weight	8.5 lbs

POE576U Series

Part	Power (Watts) - Per Port	Type	Approval Agency	Operating Temperature (Max)	Maximum Data Rate	Typical Data Rate	Minimum Data Rate	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Efficiency	Compliance	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Number of Ports	Mounting Type	Features	Note	Output Connector	Weight	Input Connector
Phihong USA POE576U-16AT-N	30 W	Midspan Injector	CE cULus	40 °C	1000 Mbps	100 Mbps	10 Mbps	17.2 in	9.06 in	1.73 in	75 %	IEEE802.3at	90 V	264 V	16	Rack Mount	OCP OTP OVP SCP	AC Power Cord Sold Separately	Power) RJ45 (Data	8.5 lbs	IEC 320-C14
Phihong USA POE576U-8AT	30 W	Midspan Injector	CE cULus	40 °C	1000 Mbps	100 Mbps	10 Mbps	17.2 in	9.06 in	1.73 in	75 %	IEEE802.3at	90 V	264 V	8	Rack Mount	OCP OTP OVP SCP	AC Power Cord Sold Separately	Power) RJ45 (Data	8.5 lbs	IEC 320-C14
Phihong USA POE576U-16AT	30 W	Midspan Injector	CE cULus	40 °C	1000 Mbps	100 Mbps	10 Mbps	17.2 in	9.06 in	1.73 in	75 %	IEEE802.3at	90 V	264 V	16	Rack Mount	OCP OTP OVP SCP	AC Power Cord Sold Separately	Power) RJ45 (Data	8.5 lbs	IEC 320-C14
Phihong USA POE576U-8AT-N	30 W	Midspan Injector	CE cULus	40 °C	1000 Mbps	100 Mbps	10 Mbps	17.2 in	9.06 in	1.73 in	75 %	IEEE802.3at	90 V	264 V	8	Rack Mount	OCP OTP OVP SCP	AC Power Cord Sold Separately	Power) RJ45 (Data	8.5 lbs	IEC 320-C14
