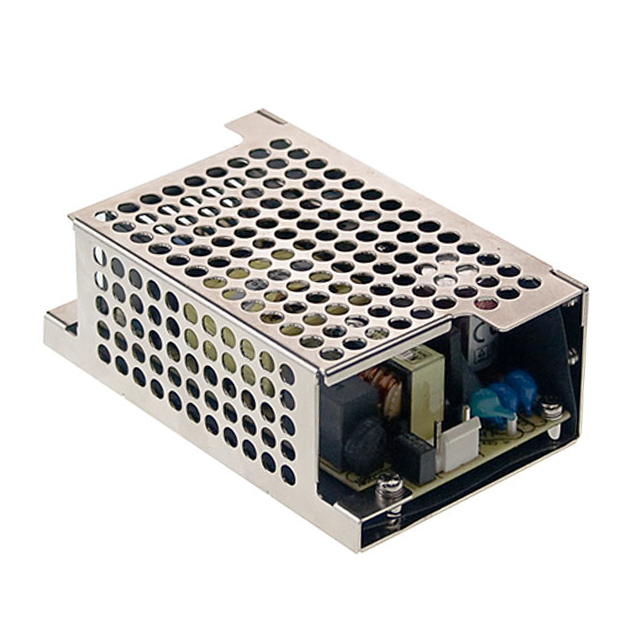

PSC-60A-C

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 13.8V 59W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 13.8V 59W

Technical Specifications

Parameters and characteristics for this part

Specification	PSC-60A-C

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	2.8 A
Current - Output 2	1.5 A
Efficiency	84 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	59 W
Size / Dimension [x]	4.07 in
Size / Dimension [x]	103.4 mm
Size / Dimension [y]	62 mm
Size / Dimension [y]	2.44 "
Size / Dimension [z]	37 mm
Size / Dimension [z]	1.46 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	13.8 V
Voltage - Output 2	13.8 V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 2	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Applications	Approval Agency	Current - Output 2	Minimum Load Required	Efficiency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Current - Output 1	Power (Watts)	Voltage - Isolation	Features
MEAN WELL USA Inc. PSC-60A-C	37 mm	4.07 in	62 mm	103.4 mm	2.44 "	1.46 "	13.8 V	Chassis Mount	90 VAC 127 VDC	264 VAC 370 VDC	13.8 V	ITE (Commercial)	CB CE cURus TUV	1.5 A		84 %	Enclosed	-20 °C	70 °C	2	2.8 A	59 W	3000 V	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 13.8V 13.8V 90 ~ 264 VAC, 127 ~ 370 VDC Input
