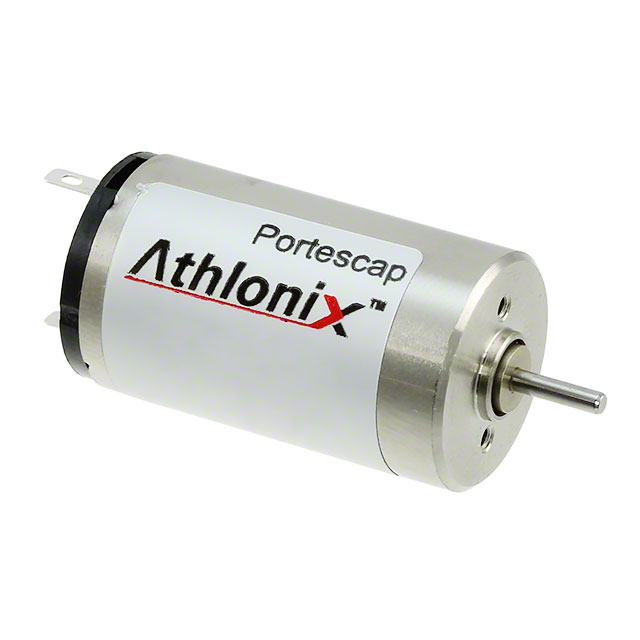

16N78214E1001

Active

Portescap

STANDARD MOTOR 10000 RPM 9V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 10000 RPM 9V

Technical Specifications

Parameters and characteristics for this part

STANDARD MOTOR 10000 RPM 9V

Part	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Hole Spacing	Mounting Hole Spacing	Termination Style	RPM	Motor Type	Operating Temperature [Min]	Operating Temperature [Max]	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Type	Voltage - Rated	Weight	Weight	Function	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Power - Rated	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]
Portescap 16N78214E1001	0.059 in	1.5 mm	9 mm	0.354 in	Solder Tab	10000 RPM	Brushed	-30 ░C	85 °C	7.5 mm	0.295 in	DC Motor	9 V	24.04 g	0.053 lb	Standard	0.94 oz-in	6.6 mNm	5.2 W	16 mm	Round	0.629 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 58.99

General part information

Brushed DC Motor Standard 10000 RPM 5.2W 9VDC
