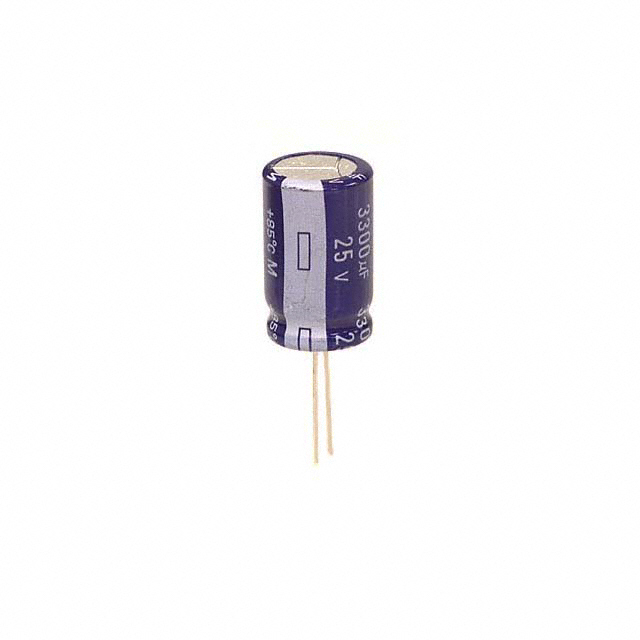

ECA-1EM332

Active

Panasonic Industrial Automation Sales

CAP ALUM 3300UF 20% 25V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECA-xxM Spec Sheet

ECA-1EM332

Active

Panasonic Industrial Automation Sales

CAP ALUM 3300UF 20% 25V RADIAL

Deep-Dive with AI

DocumentsDatasheet ECA-xxM Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-1EM332

Applications	General Purpose
Capacitance	3.3 mF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.21 A
Ripple Current @ Low Frequency	1.3 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	25 VDC

ECA-1EM Series

Part	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Polarization	Tolerance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECA-1EM100	Through Hole	12 mm	0.472 "	85 mA	Radial Can	85 °C	-40 °C	General Purpose	2 mm	0.079 in	2000 Hrs	Polar	20 %	25 VDC	5 mm	0.197 "	10 µF
Panasonic Industrial Automation Sales ECA-1EM470	Through Hole	12 mm	0.472 "	221 mA	Radial Can	85 °C	-40 °C	General Purpose	2 mm	0.079 in	2000 Hrs	Polar	20 %	25 VDC	5 mm	0.197 "	47 µF
Panasonic Industrial Automation Sales ECA-1EM101I	Through Hole	12.2 mm	0.48 "	306 mA	Radial Can	85 °C	-40 °C	General Purpose	2.5 mm	0.098 in	2000 Hrs	Polar	20 %	25 VDC	6.3 mm	0.248 in	100 µF	180 mA
Panasonic Industrial Automation Sales ECA-1EM331B	Through Hole			663 mA	Radial Can	85 °C	-40 °C	General Purpose	5 mm	0.197 in	2000 Hrs	Polar	20 %	25 VDC	8 mm	0.315 "	330 µF	390 mA	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-1EM332	Through Hole	27 mm	1.063 in	2.21 A	Radial Can	85 °C	-40 °C	General Purpose	7.5 mm	0.295 in	2000 Hrs	Polar	20 %	25 VDC	16 mm	0.63 in	3.3 mF	1.3 A
Panasonic Industrial Automation Sales ECA-1EM330I	Through Hole	12 mm	0.472 "	187 mA	Radial Can	85 °C	-40 °C	General Purpose	2.5 mm	0.098 in	2000 Hrs	Polar	20 %	25 VDC	5 mm	0.197 "	33 ÁF
Panasonic Industrial Automation Sales ECA-1EM332B	Through Hole	27 mm	1.063 in	2.21 A	Radial Can	85 °C	-40 °C	General Purpose	7.5 mm	0.295 in	2000 Hrs	Polar	20 %	25 VDC	16 mm	0.63 in	3.3 mF	1.3 A
Panasonic Industrial Automation Sales ECA-1EM331	Through Hole			663 mA	Radial Can	85 °C	-40 °C	General Purpose	3.5 mm	0.138 in	2000 Hrs	Polar	20 %	25 VDC	8 mm	0.315 "	330 µF	390 mA	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-1EM221	Through Hole			527 mA	Radial Can	85 °C	-40 °C	General Purpose	3.5 mm	0.138 in	2000 Hrs	Polar	20 %	25 VDC	8 mm	0.315 "	220 µF		0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-1EM101	Through Hole	12.2 mm	0.48 "	306 mA	Radial Can	85 °C	-40 °C	General Purpose	2.5 mm	0.098 in	2000 Hrs	Polar	20 %	25 VDC	6.3 mm	0.248 in	100 µF	180 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.33
		10	$ 1.00
		50	$ 0.91
		100	$ 0.75
		500	$ 0.60
		1000	$ 0.53
		2500	$ 0.49
		5000	$ 0.47

Description

General part information

ECA-1EM Series

3300 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
