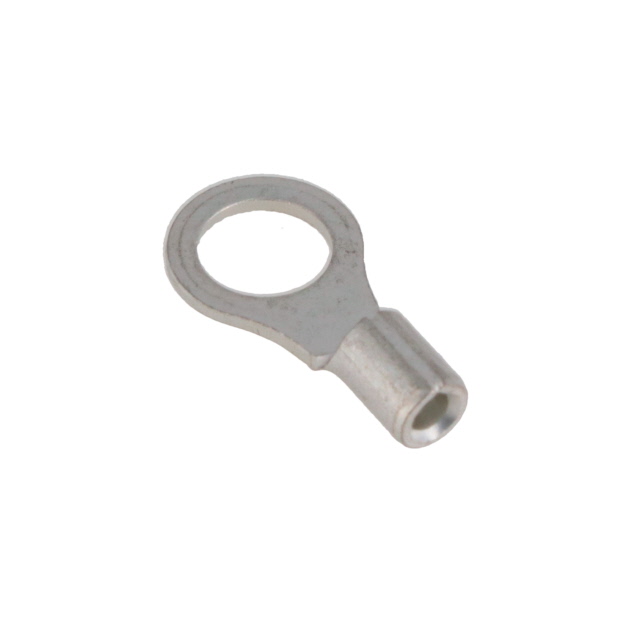

R1.25-5
ActiveJST Sales America Inc.
CONN RING CRIMP 16-22 AWG #10
Deep-Dive with AI
Search across all available documentation for this part.
R1.25-5
ActiveJST Sales America Inc.
CONN RING CRIMP 16-22 AWG #10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R1.25-5 |
|---|---|
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall [x] | 15.8 mm |
| Length - Overall [x] | 0.622 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Thickness | 0.79 mm |
| Width - Outer Edges | 8 mm |
| Width - Outer Edges | 0.315 in |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.10 | |
| 10 | $ 0.06 | |||
| 25 | $ 0.05 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.03 | |||
| 2500 | $ 0.03 | |||
Description
General part information
R1.25 Series
Ring Terminal Connector 10 Stud Circular 16-22 AWG Crimp
