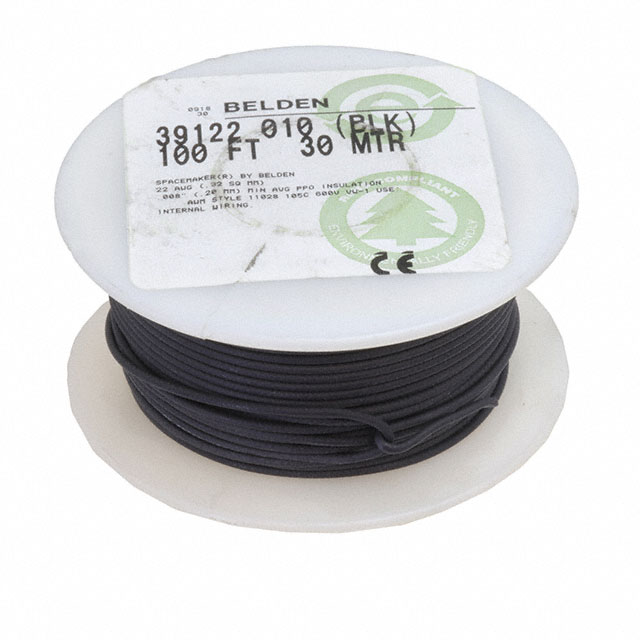

39122 010100

Active

Belden Inc.

HOOK-UP STRND 22AWG BLACK 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSpaceMaker™ Series Datasheet

39122 010100

Active

Belden Inc.

HOOK-UP STRND 22AWG BLACK 100'

Deep-Dive with AI

DocumentsSpaceMaker™ Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	39122 010100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	1.35 mm
Jacket (Insulation) Diameter [diameter]	0.053 in
Jacket (Insulation) Material	Polyphenylene Oxide (PPO)
Jacket (Insulation) Thickness	0.012 in
Jacket (Insulation) Thickness	0.3 mm
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 11028
Voltage	600 V
Wire Gauge	22 AWG

39122 Series

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Voltage	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length [x]	Length [x]
Belden Inc. 39122 0031000	0.012 in	0.3 mm	1000 ft	304.8 m	600 V	Polyphenylene Oxide (PPO)	22 AWG	Orange	1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned
Belden Inc. 39122 013100	0.012 in	0.3 mm			600 V	Polyphenylene Oxide (PPO)	22 AWG	Blue	1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned	30.5 m	100 ft
Belden Inc. 39122 0131000	0.012 in	0.3 mm	1000 ft	304.8 m	600 V	Polyphenylene Oxide (PPO)	22 AWG	Blue	1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned
Belden Inc. 39122 003100	0.012 in	0.3 mm			600 V	Polyphenylene Oxide (PPO)	22 AWG	Orange	1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned	30.5 m	100 ft
Belden Inc. 39122 010100	0.012 in	0.3 mm			600 V	Polyphenylene Oxide (PPO)	22 AWG	Black	1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned	30.5 m	100 ft
Belden Inc. 39122 008100	0.012 in	0.3 mm			600 V	Polyphenylene Oxide (PPO)	22 AWG	Gray	1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned	30.5 m	100 ft
Belden Inc. 39122 0041000	0.012 in	0.3 mm	1000 ft	304.8 m	600 V	Polyphenylene Oxide (PPO)	22 AWG	Yellow	1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned
Belden Inc. 39122 004100	0.012 in	0.3 mm			600 V	Polyphenylene Oxide (PPO)	22 AWG	Yellow	1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned	30.5 m	100 ft
Belden Inc. 39122 0095000	0.012 in	0.3 mm			600 V	Polyphenylene Oxide (PPO)	22 AWG		1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned
Belden Inc. 39122 005100	0.012 in	0.3 mm			600 V	Polyphenylene Oxide (PPO)	22 AWG	Green	1.35 mm	0.053 in	7	30 AWG	UL Style 11028	Hook-Up	-40 °C	105 ░C	Copper Tinned	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 136.16
		3	$ 125.96
		5	$ 121.59
		7	$ 118.68
		10	$ 115.77
		25	$ 108.49
		50	$ 102.66
		100	$ 98.29

Description

General part information

39122 Series

22 AWG Hook-Up Wire 7/30 Black 600V 100.0' (30.5m)

Documents

Technical documentation and resources

SpaceMaker™ Series

Datasheet
