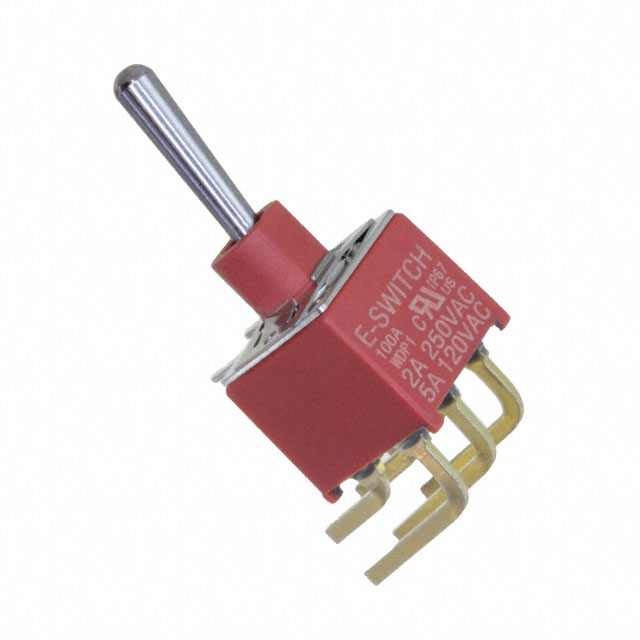

100AWDP1T1B4M6QE

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

100AWDP1T1B4M6QE

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100AWDP1T1B4M6QE	100AWDP1 Series

Actuator Length	-	10.53 mm
Actuator Length [x]	0.5 in	0.5 - 10.55 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded, 1/4-40
Circuit	DPDT	DPDT
Current Rating (Amps)	5 A	0.4 - 5 VA
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle	Through Hole, Vertical, Right Angle, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 in
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100AWDP1 Series

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Circuit	Actuator Material	Ingress Protection	Voltage Rating - DC	Illumination	Mounting Type	Termination Style	Current Rating (Amps)	Switch Function	Actuator Length [x]	Bushing Thread	Voltage Rating - AC	Electrical Life	Features	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Actuator Length [z]
E-Switch 100AWDP1T2B4M7RE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	20 V	Non-Illuminated	Right Angle, Through Hole, Vertical	PC Pin	0.4 VA	On-On	7.62 mm	Unthreaded	20 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T1B4M6QE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated	Through Hole, Right Angle	PC Pin	5 A	On-On	0.5 in	Unthreaded	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T2B4M2RE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	20 V	Non-Illuminated	Through Hole	PC Pin	0.4 VA	On-On	7.62 mm	Unthreaded	20 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T1B4M1QE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated		Solder Lug	5 A	On-On	0.5 in	Unthreaded	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T2B4M2QE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated	Through Hole	PC Pin	5 A	On-On	7.62 mm	Unthreaded	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T2B4M6RE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	20 V	Non-Illuminated	Through Hole, Right Angle	PC Pin	0.4 VA	On-On	7.62 mm	Unthreaded	20 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T1B1M2QEH	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated		PC Pin	5 A	On-On		1/4-40	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C	0.25 in	10.53 mm
E-Switch 100AWDP1T1B4VS21QE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated	Through Hole	PC Pin	5 A	On-On	0.5 in	Unthreaded	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T1B1M2REH	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	20 V	Non-Illuminated		PC Pin	0.4 VA	On-On	10.41 mm	1/4-40	20 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C	0.25 in
E-Switch 100AWDP1T1B1M1QEH	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated		Solder Lug	5 A	On-On	10.55 mm	1/4-40	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.95
		10	$ 3.53
		25	$ 3.34
		50	$ 3.22
		100	$ 3.06
		250	$ 3.01

Description

General part information

100AWDP1 Series

Toggle Switch DPDT Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
