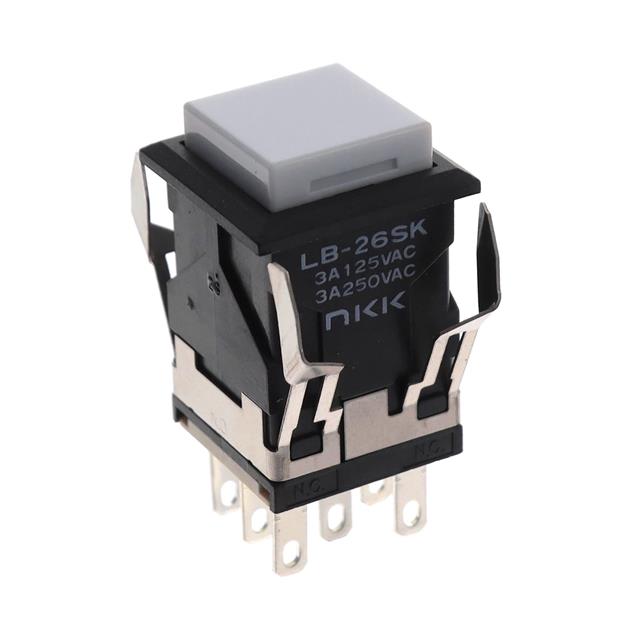

LB26SKW01-B

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB26SKW01-B

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB26SKW01-B

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	16.2 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB26SKW Series

Part	Actuator Marking	Illumination Voltage (Nominal)	Circuit	Switch Function	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mechanical Life	Termination Style	Termination Style	Termination Style	Illumination Type, Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Voltage Rating - AC	Type	Color - Actuator/Cap	Voltage Rating - DC	Current Rating (Amps)
NKK Switches LB26SKW01-1C-A	No Marking	1.9 VDC	DPDT	On-On	100000 Cycles	50 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	LED Red	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Illuminated Standard	Black	30 V	3 A
NKK Switches LB26SKW01-1D-A	No Marking	2 VDC	DPDT	On-On	100000 Cycles	50 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Amber LED	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Illuminated Standard	Black	30 V	3 A
NKK Switches LB26SKW01-JC	No Marking		DPDT	On-On	100000 Cycles	70 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm		16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Standard	Clear (Red Filter/Diffuser)	30 V	3 A
NKK Switches LB26SKW01-B	No Marking		DPDT	On-On	100000 Cycles	70 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm		16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Standard	White	30 V	3 A
NKK Switches LB26SKW01-1F-A	No Marking	2.1 VDC	DPDT	On-On	100000 Cycles	50 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Green LED	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Illuminated Standard	Black	30 V	3 A
NKK Switches LB26SKW01-01-JC	No Marking		DPDT	On-On	100000 Cycles	50 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Neon Red	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Illuminated Standard	Clear (Red Filter/Diffuser)	30 V	3 A
NKK Switches LB26SKW01-E	No Marking		DPDT	On-On	100000 Cycles	70 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm		16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Standard	Yellow	30 V	3 A
NKK Switches LB26SKW01-5D-JD	No Marking	2 VDC	DPDT	On-On	100000 Cycles	50 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Amber LED	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Illuminated Standard	Clear	30 V	3 A
NKK Switches LB26SKW01-5F-JB	No Marking	2.1 VDC	DPDT	On-On	100000 Cycles	50 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	Green LED	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Illuminated Standard	Clear	30 V	3 A
NKK Switches LB26SKW01-5C-JB	No Marking	1.9 VDC	DPDT	On-On	100000 Cycles	50 °C	-25 °C	Button Square	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	LED Red	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	Illuminated Standard	Clear	30 V	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.26
		10	$ 14.58
		100	$ 12.73
		1000	$ 9.91
Newark	Each	1	$ 31.01
		5	$ 29.45
		10	$ 27.30
		25	$ 24.90
		50	$ 21.55
		100	$ 20.11
		250	$ 18.32

Description

General part information

LB26SKW Series

Pushbutton Switch DPDT Standard Panel Mount, Snap-In
