Q-2I0110003009i

Active

Amphenol Custom Cable

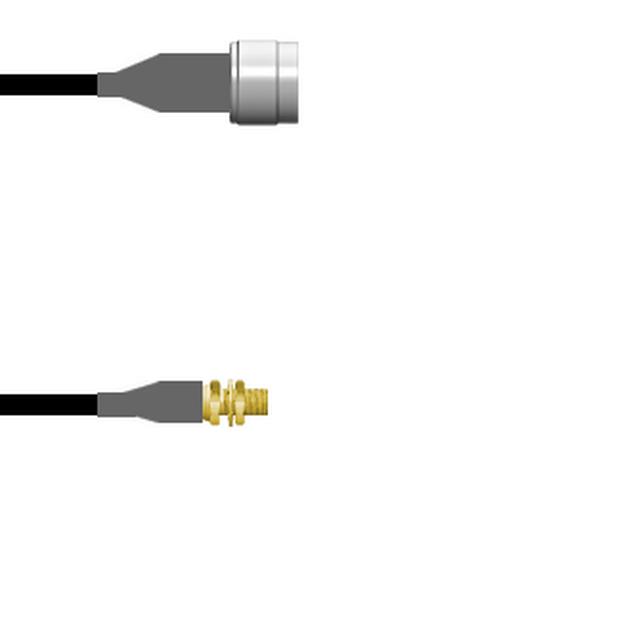

CBL ASSY MCX-NTYPE JACK-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I0110003009i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JACK-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I0110003009i

1st Connector	MCX Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2I0110 Series

Part	Length	Length	Cable Type	Overall Impedance	2nd Connector	2nd Contact Gender	Frequency - Max [Max]	Features	1st Connector	1st Connector Mounting Feature	Style	1st Contact Gender	2nd Connector Mounting Type	Color	1st Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2I0110003009i	9 "	228.6 mm	RG-174	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Black	Panel Mount
Amphenol Custom Cable Q-2I01100051.5M	59.1 in	1.5 m	RG-316	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Copper	Panel Mount	4.9 ft
Amphenol Custom Cable Q-2I0110003024i	24 "	609.6 mm	RG-174	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Black	Panel Mount
Amphenol Custom Cable Q-2I0110005003M	118.1 in	3 m	RG-316	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Copper	Panel Mount	9.8 '
Amphenol Custom Cable Q-2I0110003012i	12 "	304.8 mm	RG-174	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Black	Panel Mount
Amphenol Custom Cable Q-2I0110005002M	78.7 in	2 m	RG-316	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Copper	Panel Mount	6.6 ft
Amphenol Custom Cable Q-2I0110005018i			RG-316	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Copper	Panel Mount		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2I0110005.75M	29.53 "	750 mm	RG-316	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Copper	Panel Mount
Amphenol Custom Cable Q-2I0110003036i	36 in	91.44 cm	RG-174	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Black	Panel Mount
Amphenol Custom Cable Q-2I0110005012i	12 "	304.8 mm	RG-316	50 Ohms	N-Type Plug	Male	6000 MHz	Shielded	MCX Jack	Bulkhead - Front Side Nut	MCX to N-Type	Female	Free Hanging (In-Line)	Copper	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 99.52
		25	$ 97.59
		50	$ 95.66
		100	$ 93.73
		250	$ 91.80

Description

General part information

Q-2I0110 Series

Cable Assembly Coaxial MCX to N-Type RG-174 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
