10090769-P154ALF
ActiveAmphenol ICC (FCI)

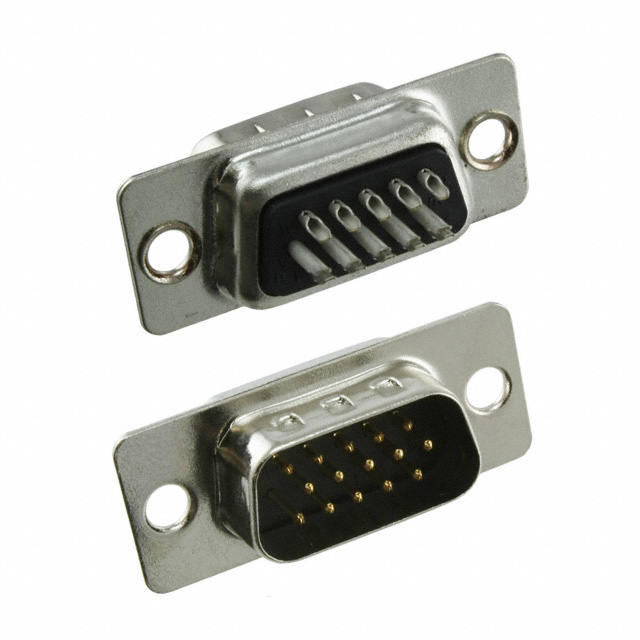

CONN D-SUB HD PLUG 15P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
10090769-P154ALF
ActiveAmphenol ICC (FCI)
CONN D-SUB HD PLUG 15P SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10090769-P154ALF |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 2.5 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Voltage Rating | 250 VDC |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.41 | |
| 10 | $ 1.07 | |||
| 25 | $ 0.91 | |||
| 40 | $ 0.89 | |||
| 80 | $ 0.84 | |||
| 230 | $ 0.74 | |||
| 440 | $ 0.70 | |||
| 945 | $ 0.65 | |||
| 2400 | $ 0.59 | |||
Description
General part information
10090769 Series
15 Position D-Sub, High Density Plug, Male Pins Connector
