111-93-624-41-001000

Active

Mill-Max Manufacturing Corp.

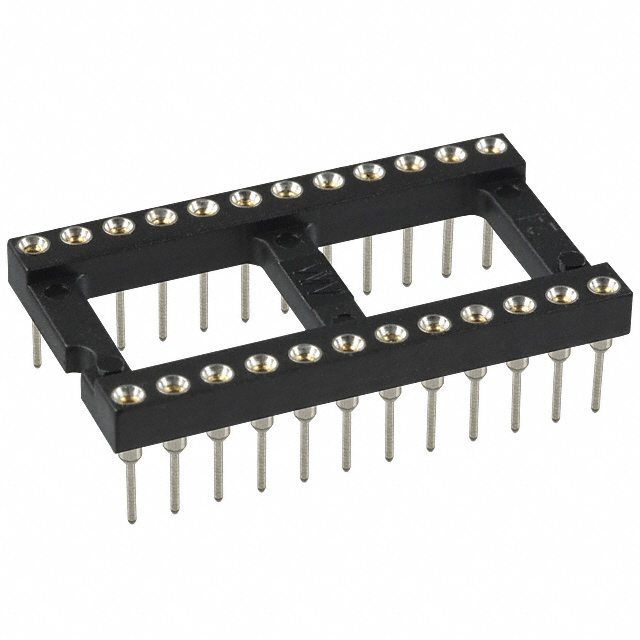

CONN IC DIP SOCKET 24POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

111-93-624-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 24POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	111-93-624-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	24
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	DIP
Type	0.6 in
Type	15.24 mm

111-93 Series

Part	Termination	Current Rating (Amps)	Contact Material - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length	Termination Post Length	Housing Material	Type	Type	Type	Mounting Type	Number of Positions or Pins (Grid)	Contact Material - Post	Contact Finish - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 111-93-328-41-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP	Through Hole	28	Brass Alloy	Gold	Open Frame	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 111-93-316-61-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP	Through Hole	16	Brass Alloy	Gold	Open Frame	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 111-93-324-41-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP	Through Hole	24	Brass Alloy	Gold	Open Frame	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 111-93-652-61-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.6 in	15.24 mm	DIP	Through Hole		Brass Alloy	Gold	Open Frame	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 111-93-316-41-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP	Through Hole	16	Brass Alloy	Gold	Open Frame	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 111-93-308-41-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP	Through Hole	8	Brass Alloy	Gold	Open Frame	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 111-93-424-41-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.4 in	10.16 mm	DIP	Through Hole	24	Brass Alloy	Gold	Open Frame	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 111-93-642-61-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.6 in	15.24 mm	DIP	Through Hole	42	Brass Alloy	Gold	Open Frame	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 111-93-624-41-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.6 in	15.24 mm	DIP	Through Hole	24	Brass Alloy	Gold	Open Frame	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 111-93-306-61-001000	Solder	3 A	Beryllium Copper	Tin-Lead	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.3 "	7.62 mm	DIP	Through Hole		Brass Alloy	Gold	Open Frame	200 µin	5.08 µm	2	6	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.07
		16	$ 3.69
		32	$ 3.50
		64	$ 3.42
		112	$ 3.25
		256	$ 2.85
		512	$ 2.77
		1008	$ 2.36
		2512	$ 2.20

Description

General part information

111-93 Series

24 (2 x 12) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
