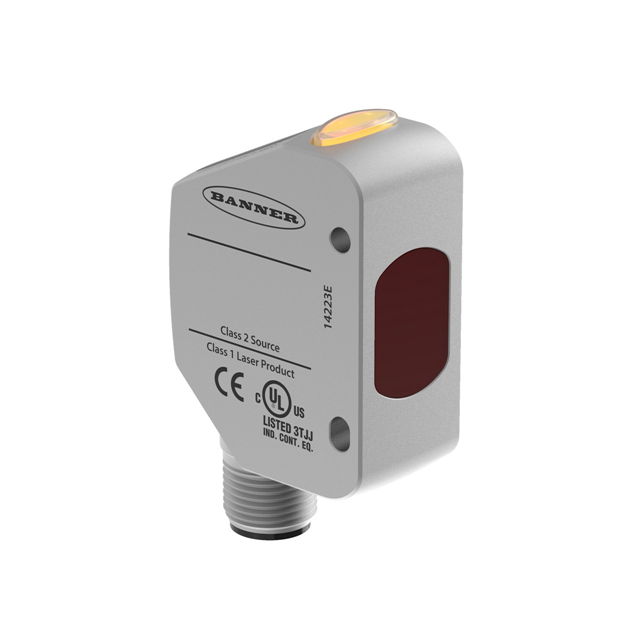

Q4XFILAF310-Q8

Active

BANNER ENGINEERING

LASER SEN 610MM PNP/NPN IO LINK

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LASER SEN 610MM PNP/NPN IO LINK

Technical Specifications

Parameters and characteristics for this part

Specification	Q4XFILAF310-Q8

Adjustment Type	Adjustable
Connection Method	Connector, M12
Ingress Protection	IP69K, IP68, IP67
Light Source	Red LED
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	Analog
Response Time	500 µs
Sensing Distance	310 mm
Sensing Distance	35 mm
Sensing Distance [Max]	12.205 "
Sensing Distance [Min]	1.378 in
Sensing Method	Proximity
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

Part	Output Configuration	Ingress Protection	Sensing Distance	Sensing Distance [Min]	Sensing Distance	Sensing Distance [Max]	Sensing Method	Connection Method	Adjustment Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Light Source	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]
BANNER ENGINEERING Q4XFILAF310-Q8	Analog	IP67 IP68 IP69K	310 mm	1.378 in	35 mm	12.205 "	Proximity	Connector M12	Adjustable	-10 °C	50 °C	Red LED	500 µs	12 V	30 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 571.00

General part information

Proximity Optical Sensor 1.378" ~ 12.205" (35mm ~ 310mm) Analog
